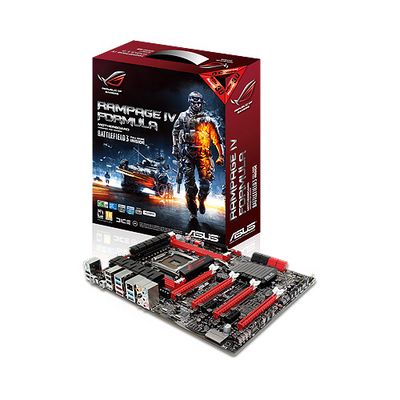

Asus RAMPAGE IV FORMULA/BF3, X79 LGA2011 4DDR3 4PICE16 SATA3 RAID USB3.0 BF3

Information

Item ID

288340

Item Number

B-RAMPAGE_IV_FORMULA/BF3

Manufacturer Part No

RAMPAGE IV FORMULA/BF3

UPC/EAN Number

Our Stock **

1-3days*

Price

$392.04

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: Asus
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	>5		26/05/12 10:29PM
Supplier two	5+		26/05/12 10:30PM

Features

The world's best X79 gaming board with full version of Battelfied 32nd Generation Intel® Core i7 processor family for the LGA 2011 SocketIntel® X79 Express ChipsetSupremeFX III - Supreme SoundExtreme Engine Digi+ II Optimum power efficiency with premium components and intelligent digital designX-Socket - Get more life out of your LGA1366 CPU coolersNVIDIA® SLI / AMD CrossFireX Technology Support

CPU	Intel® Socket 2011 for 2^nd Generation Core™ i7 Processors Supports Intel® Turbo Boost Technology 2 * Refer to www.asus.com for CPU support list
Chipset	Intel® X79
Memory	4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz Memory Quad Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Multi-GPU Support	Supports NVIDIA® 4-Way SLI™ Technology *¹ Supports AMD 4-Way CrossFireX Technology
Expansion Slots	4 x PCIe 3.0/2.0 x16 (x16; x16/x16; x16/x8/x16 and x16/x8/x8/x8, red) *² 2 x PCIe 2.0 x1
Storage	Intel® X79 chipset : 2 x SATA 6Gb/s port(s), red 4 x SATA 3Gb/s port(s), black Support Raid 0, 1, 5, 10 ASMedia® ASM1061 controller : 2 x SATA 6Gb/s port(s), red 2 x Power eSATA 6Gb/s port(s), red
LAN	Intel®, 1 x Gigabit LAN Controller(s)
Audio	SupremeFX III built-in 8-Channel High Definition Audio CODEC - Output Signal-to-Noise Ratio (A-Weighted): 110 dB - Output THD+N at 1kHz: 95 dB - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - SupremeFX Shielding™ Technology - 1500 uF Audio Power Capacitor - Gold-plated jacks - X-Fi® Xtreme Fidelity™ - EAX® Advanced™ HD 5.0 - THX® TruStudio PRO™ - Creative ALchemy - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel
USB Ports	ASMedia® USB 3.0 controller : 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® X79 chipset : 12 x USB 2.0 port(s) (6 at back panel, black+white, 6 at mid-board)
Overclocking Features	ROG Connect : - RC Diagram - RC Remote - RC Poster - GPU TweakIt Extreme Engine Digi+ II : - 8 -phase CPU power design - 3 -phase VCCSA power design - 2 + 2 phase DRAM power design ROG Extreme OC kit : - Slow Mode - LN2 Mode - PCIe x16 Lane Switch - Q Reset - EZ Plug ProbeIt UEFI BIOS features : - ROG BIOS Print - ROG BIOS Wallpaper - GPU.DIMM Post GameFirst iROG Extreme Tweaker Loadline Calibration USB BIOS Flashback Overclocking Protection : - COP EX (Component Overheat Protection - EX) - Voltiminder LED II - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS EPU : - EPU CPU Level Up ASUS Exclusive Features : - MemOK! - Onboard Button : Power/Reset/Clr CMOS (at back IO) ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 2 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 6 x USB 2.0 (one port can be switched to ROG Connect) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Clear CMOS button(s) 1 x ROG Connect On/ Off switch(es)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 2 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 3 x Optional Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Power-on button(s) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x Go Button(s)
Accessories	User's manual I/O Shield 4 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x SLI bridge(s) 1 x CrossFire cable(s) 1 x Q-connector(s) (2 in 1) 1 x ROG Connect cable(s) 1 x ROG theme label(s) 1 x 12 in 1 ROG Cable Label(s) 1 x X-Socket pad(s) 1 x ROG Door Hanger(s) 1 x BATTLEFIELD 3 Key Code(s) 1 x BATTLEFIELD 3 Lanyard(s)
BIOS	2 x 64Mb UEFI AMI BIOSs, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability	WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Support Disc	Drivers Sound Blaster® X-Fi 2 Utility Kaspersky® Anti-Virus DAEMON Tools Pro Standard ROG CPU-Z Mem TweakIt ASUS WebStorage ASUS Utilities
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years
Weight	3 KG
Note	1: The 4-Way SLI™ bridge is purchased separately. 2: This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details.
