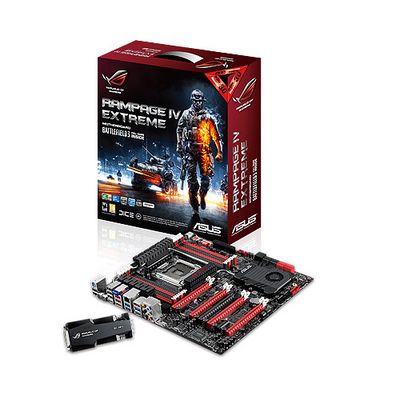

Asus RAMPAGE IV EXTREME/BF3, X79 LGA2011 8DDR3 5PICE16 SATA3 RAID USB3.0 1394 BF3

Information

Item ID

288339

Item Number

B-RAMPAGE_IV_EXTREME/BF3

Manufacturer Part No

RAMPAGE IV EXTREME
RAMPAGE IV EXTREME/BF3

UPC/EAN Number

Our Stock **

1-3days*

Price

$574.99

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: Asus
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	0	ETA: 28/05/2012	26/05/12 10:29PM
Supplier two	1		25/05/12 08:43AM
Supplier three	0		26/05/12 10:30PM

Features

The most powerful X79 board has arrived!2nd Generation Intel® Core i7 processor family for the LGA 2011 SocketIntel® X79 Express ChipsetX-Socket - Get more life out of your LGA1366 CPU coolersOC Key - The key to real time monitoring and overclocking!Subzero Sense - Find out how cold your board isVGA Hotwire - Hotwire your system USB BIOS Flashback - Easy, worry-free USB BIOS Flashback

CPU	Intel® Socket 2011 for 2^nd Generation Core™ i7 Processors Supports Intel® Turbo Boost Technology 2 * Refer to www.asus.com for CPU support list
Chipset	Intel® X79
Memory	8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support	Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology
Expansion Slots	4 x PCIe 3.0/2.0 x16 (x16; x16/x16; x16/x8/x16 and x16/x8/x8/x8, red) ¹ 1 x PCIe 3.0/2.0 x16 (x8 mode, gray) ¹ 1 x PCIe 2.0 x1
Storage	Intel® X79 chipset : 2 x SATA 6Gb/s port(s), red 4 x SATA 3Gb/s port(s), black Support Raid 0, 1, 5, 10 ASMedia® PCIe SATA controller : 2 x eSATA 6Gb/s port(s), red 2 x SATA 6Gb/s port(s), red
LAN	Intel®, 1 x Gigabit LAN Controller(s)
Bluetooth	Bluetooth V2.1+EDR
Audio	Realtek® ALC898 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel
USB Ports	ASMedia® USB 3.0 controller : 8 x USB 3.0 port(s) (4 at back panel, blue, 4 at mid-board) Intel® X79 chipset : 12 x USB 2.0 port(s) (8 at back panel, black+red, 4 at mid-board)
Overclocking Features	ROG OC Key - OSD TweakIt - OSD Monitor ROG Connect : - RC Diagram - RC Remote - RC Poster - GPU TweakIt ROG iDirect Extreme Engine Digi+ II : - 8 -phase CPU power design - 3 -phase VCCSA power design - 2 + 2 phase DRAM power design ROG Extreme OC kit : - Subzero Sense - VGA Hotwire - Slow Mode - LN2 Mode - PCIe x16 Lane Switch - Q Reset - EZ Plug ProbeIt UEFI BIOS features : - GPU.DIMM Post iROG Extreme Tweaker Loadline Calibration BIOS Flashback USB BIOS Flashback Overclocking Protection : - COP EX (Component Overheat Protection - EX) - Voltiminder LED II - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS EPU : - EPU CPU Level Up ASUS Exclusive Features : - MemOK! - Onboard Button : Power/Reset/Clr CMOS (at back IO) ASUS Quiet Thermal Solution : - ASUS Q-Fan Plus - ASUS Fan Xpert ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x Bluetooth module(s) 2 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 8 x USB 2.0 (one port can be switched to ROG Connect) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Clear CMOS button(s) 1 x ROG Connect On/ Off switch(es) 1 x RC Bluetooth switch(es)
Internal I/O Ports	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 2 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 3 x Optional Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x OC Key header(s) 1 x OT header(s) 2 x Subzero Sense connector(s) 1 x Slow Mode switch(es) 7 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x LN2 Mode header(s) 1 x Q Reset switch(es) 2 x EZ Plug connector(s) (4-pin in white for memory DIMMs; 6-pin in black for PCIe slots) 1 x Power-on button(s) 1 x Reset button(s) 1 x Go Button(s) 1 x BIOS Switch button(s)
Accessories	I/O Shield 4 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI bridge(s) 1 x CrossFire cable(s) 1 x Q-connector(s) (2 in 1) 1 x ROG Connect cable(s) 1 x ProbeIt cable set(s) 1 x 12 in 1 ROG Cable Label(s) 1 x OC Key(s) 1 x OC Key cable(s) 1 x X-Socket pad(s)
BIOS	2 x 64Mb Flash ROMs, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability	WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Support Disc	Support DVD: - Drivers and Applications Kaspersky Anti-Virus ASUS TurboV EVO Utility ASUS PC Probe II ASUS Update ASUS AI Suite II ASUS AI Charger+ Daemon Tool Pro Standard ASUS WebStorage
Form Factor	Extended ATX Form Factor 12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
Warranty	3 Years
Weight	3 KG
Note	1-1 This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details. 1-2 For PCIe 3.0 x16 (X8 mode), PCIEx8_2B(Grey) shares bandwidth with PCIEx8_2A(Red).
