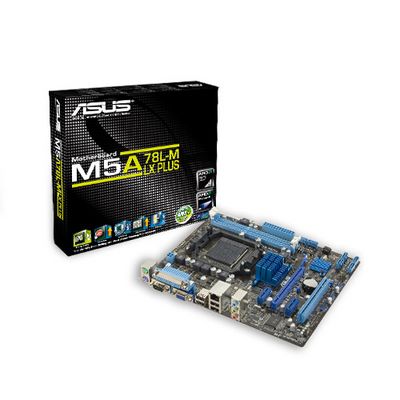

Asus M5A78L-M LX PLUS, AM3+, 760G, HT5200, 2DDR3, SATA2, Gblan, PCIe, Dsub, 125W, mATX

CPU

AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports CPU up to 125 W
AMD Cool 'n' Quiet™ Technology

Chipset

AMD 760G (780L)/SB710

Memory

2 x DIMM, Max. 8GB, DDR3 1866(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.
* AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz.

System Bus

Up to 5.2 GT/s HyperTransport™ 3.0

Graphic

Integrated ATI Radeon™ HD 3000 GPU
VGA output support : RGB port
- Supports RGB with max. resolution 2560 x 1440 @ 75 Hz
Maximum shared memory of 1024 MB
Hybrid CrossFireX™ Support *¹
Supports DirectX 10

Expansion Slots

1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI

Storage

AMD SB710 controller :
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD

LAN

Realtek® 8111E , 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *²

USB Ports

AMD SB710 controller :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)

Overclocking Features

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS Power Design :
- ASUS EPU-4 Engine
Turbo Key
Core Unlocker
ASUS Exclusive Features :
- Ai Charger
- Anti-Surge
ASUS Quiet Thermal Solution :
- ASUS Q-Fan
ASUS EZ DIY :
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

Accessories

User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)

BIOS

16 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.5, ACPI V2.0a

Support Disc

Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)

Form Factor

uATX Form Factor
9.6 inch x 8 inch ( 24.4 cm x 20.3 cm )

Warranty

1 Year

Weight

1.5 KG

Note

*1: Refer to www.amd.com for the Hybrid CrossFireX selected GPUs.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
