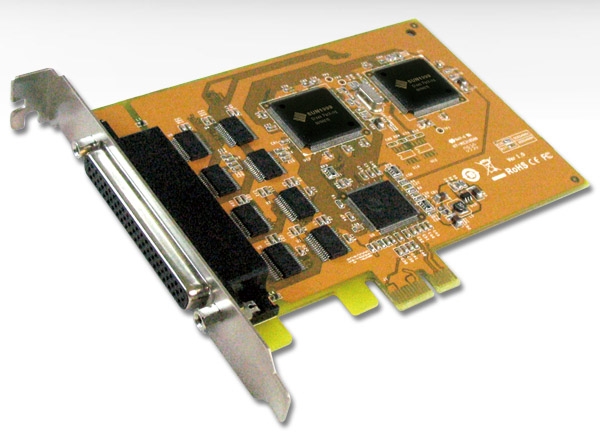

Sunix SER5466A PCI Express 8 Port RS-232 Serial Card (DB9M Connectors)

Features

(Pictures are For Illustration Purposes Only)

Sunix


Description:


Sunix SER5466A PCI Express 8 Port RS-232 Serial Card (DB9M Connectors)


Introduction


SUNIX SER5466A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 1.1. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add eight serial ports to their system, allowing them to use serial devices further. SUNIX SER5466A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.


Features

  • Expands 8 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.
  •



Specifications:


DESCRIPTION


Product Description

8-port RS-232 PCI Express Serial Board


SERIAL COMMUNICATION


Interface

RS-232

Controller

SUNIX SUN1999 (16C950 UART Compatible)

Bus

PCI Express one lane (x1)

No. of Port

8-port

IRQ & IO

Assigned by System

FIFO

128 byte (Hardware)

Signal

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Baud rate

50 bps to 115.2 Kbps

Data bit

5,6,7,8

Stop bit

1,1.5,2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, Xon/Xoff, RTS/CTS

Protection

±15KV ESD protection for each signal Human Body Model (HBM)

±15KV IEC1000-4-2 Air Gap Discharge

±8KV IEC1000-4-2 Contact Discharge

PCB connector

DB62 Female


DRIVER SUPPORT


Microsoft Client

Windows XP/Vista/7 (X86/X64)

Microsoft Server

Windows 2000/2003/2008 (X86/X64)

Microsoft Embedded

Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7

Linux

Linux 2.4.x / 2.6.x

DOS

DOS

FreeBSD

FreeBSD 5.3~5.5 / 6.0~6.4

QNX

QNX 6.3.2/6.4.0

* IBM OS/2

WARP 3/WARP 4

* SCO UnixWare

UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0

* Sun Microsystems

Solaris 10

Note : “ * ” Supported by special inquiry.


REGULATORY APPROVALS


Hardware

EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS

Software

Microsoft WHQL Windows

• Microsoft Client: XP/Vista/7 (X86/X64)

• Microsoft Server: 2000/2003/2008 (X86/X64)


ENVIRONMENT


Operation Temperature

0 to 60°C (32 to 140°F)

Operation Humidity

5 to 95% RH

Storage Temperature

-20 to 85°C (-4 to 185°F)


DIMENSION


PCB Dimension

127 x 98 mm

Bracket

Standard 121 mm

Bracket Space

1
