AMD ATI PCIe FirePro V7800P 2GB Passive 31004-21-40R

AMD FirePro™ V7800P professional graphics offer the same features and benefits as the AMD FirePro™ V7800 in a passively cooled form factor ideal for server environments. Delivering ultra-fast performance, superb visual quality and massively parallel processing power, AMD FirePro™ V7800P professional graphics can help IT minimize operating costs and time spent on servicing individual systems, increase asset utilization density and secure critical data.

Based on a single unified driver, AMD FirePro™ V7800P professional graphics offers IT a flexible and scalable solution capable of supporting traditional professional graphics applications for CAD and Digital Content Creation (DCC) professionals, Remote Graphics and Virtual Desktop Infrastructure (VDI) deployments, rendering farms and High Performance Computing implementations.


ATI PCIe FirePro V7800P 2GB Passive 2048MB GDDR5 256Bit (128.0GB/s) Memory 1x Display Port ATX Dual Slot Passive Cooler Stream Processors: 1440 Supports: OpenGL 3.2, DirectX 11.0 Shader Model 5.0, OpenCL 1.0 Requires 500Watt PSU & 6Pin Power Includes: DP to DVI SL (1) [31004-21-40R]

GPU

• 1,440 Stream processors
• 256-bit Memory Interface

Memory

• 2GB GDDR5
• Bandwidth (GB/s): 128

Display Outputs and Adapters

• One DisplayPort 1.1 connector
• One DisplayPort to DVI (single link) adapter

System Requirements

• Available PCIe® 2.1 x16 lane
• Microsoft Windows Server® 2008 R2 SP1, Microsoft® Windows® XP, Windows Vista™, Windows 7® or Linux®¹ (32-bit or 64-bit)
• 512MB of system memory
• Power supply with one 2x3 auxiliary power connector

Warranty and Support

• Three year limited product repair/replacement warranty
• Direct toll free phone and email access to dedicated workstation technical support team²
• Advanced parts replacement option

API and OS Support

• OpenGL® 4.1
• DirectX® 11
• OpenCL™ 1.1
• Microsoft Windows Server® 2008 R2 SP1, Microsoft® Windows® XP, Windows Vista™ and Windows 7® (32- and 64-bit)
• Linux® (32- and 64-bit)

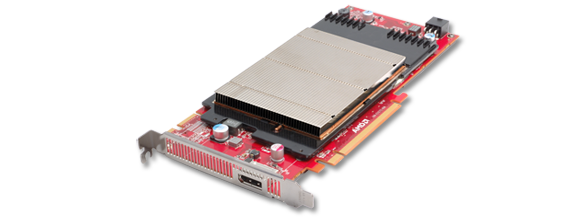

Click to view full size

(Pictures are For Illustration Purposes Only)
