Appliance Test 1 & 3 Pha New CG2 Printer SUPERPATCG2

Information

Item ID

281025

Item Number

Y-SUPERPATCG2

Manufacturer Part No

SUPERPATCG2

UPC/EAN Number

9318674928843

Our Stock **

1-3days*

Price

$9,632.15

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Generic
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	9		26/05/12 10:30PM

Features

The AlphaPat and SuperPatCG2 Appliance Tester (Single & 3 Phase)
The AlphaPat is a very powerful and lightweight portable appliance tester packaged for the Australian and New Zealand markets. Available in two versions i.e. the budget version AlphaPat or the complete package SuperPatCG2 offering varying features including the option of testing three phase appliances.

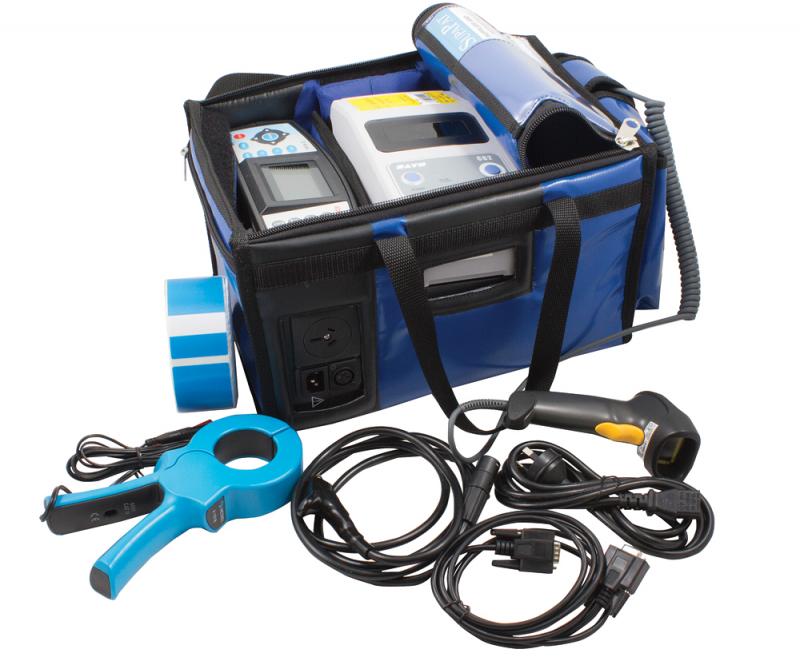

The SuperPatCG2 comes with an AlphaPat, vinyl label printer (customer logo programmable on request at extra cost), barcode scanner, RSR SimplyPATs Software, Clamp for Differential Earth Leakage testing 3 phase appliances) and accessory leads in a compact bag that gives you a complete appliance testing package for most applications.

The AlphaPat offers additional testing Features like substitute leakage current, touch leakage current and low range PE leakage test that are not required for AS3760-2003. The AlphaPat does not have an RCD test feature.

Note: If the SuperPatCG2 software is opened and the license registered, it is not refundable.A fee will be charged for the software. Download demo version from www.simplypats.co.uk

Features	SuperPatCG2 Only (Includes Printer)
• Tests to AS/NZ3760-2003 • Single and three phase appliances • PC updatable firmware • Updatable software • Custom testing • Earth Bond Test • Powered Leakage to Earth Test • Load testing • Checks installation supply • On-board Help Menu • RFID and bar code capable • One year Warranty • AlphaPat is upgradeable to SuperPatCG2 • IP41 • Easy to use with Auto Test codes	• Package in easy to carry custom bag • Bag is water resistant • Printer attached (customer logo programmable) • Accessories attached • 7 different coloured tags • Prints a 'DANGER' label for failed appliances • Double barcode printing • Fast and reliable • Visual logging with electrical units of measurement • Comprehensive software • Autotest after code is selected

Compliance and Safety
IEC61010 CAT II 300V (suitable for appliance testing), double insulation

Ranges AlphaPat

Feature	Range	Accuracy
Earth Bond Test	0.00 to 19.99Ω @ 10 or 25 A AC	¬ 5% + 5 dgt
Earth Screen Test	0.00 to 19.99Ω @100mA to 20mA	¬ 5% + 5 dgt
Insulation test	0.00 to 19.99 MΩ	¬ 5% + 5 dgt
Differential Leakage Test	0.00 to 19.99 mA	¬ 5% + 5 dgt
Funtional Test	-	-
Current	Á0.00 to 19.99A	¬ 5% + 3 dgt
Power	Á0.00 to 3.69 kVA	-
IEC Lead Test	Open, Short, Crossed @ 50V DC	N/A
Clamp Current Test	Á0.00 to 99.9 mA	¬ 10% + 5 dgt
Clamp Current Test	100 mA to 19.99 A	¬ 5%
RS 232 Interface	Baud Rate 9600	N/A
Memory	4 Mbit Data Flash Memory	N/A

AlphaPat
The unit comes in a bag with manual, code list and cable accessories.

SuperPatCG2
The unit comes in a water resistant carry bag with printer, manual, code list and cable accessories. Both units are factory tested and calibrated.
Power Supply: 230 V AC 50/60 Hz (+6% or -10%)Size: L265 x W110 x H185mm
Weight: of AlphaPat 3.5 kg SuperPat 9.66 kg

Ordering Information

Part No.	Description
ALPHAPAT	AlphaPat Appliance Tester
SuperPatCG2	SuperPatCG2 Appliance Tester

Also available

Labels for the SuperPatCG2. Available in rolls of 500

Part No. - PC4 Part No. - CG2 Description

TSTCL TSTCLCG2 Label clear vinyl overlay

TSTRW TSTRWCG2 Tough Tag - red with white strip

TSTBW TSTBWCG2 Tough Tag - blue with white strip

TSTGW TSTGWCG2 Tough Tag - green with white strip

TSTGYW TSTGYWCG2 Tough Tag - grey with white strip

TSTOW TSTOWCG2 Tough Tag - orange with white strip

TSTPW TSTPWCG2 Tough Tag - purple with white strip

TSTW TSTWCG2 Tough Tag - white

TSTYW TSTYWCG2 Tough Tag - yellow with white strip

RB046 RB046CG2 Tough Tag - wax resin ribbon 110mm x 91mm B11A

*PC4 refers to original printer for SuperPat
*CG2 refers to an updated printer for SuperPatCG2

Click to view full size

(Pictures are For Illustration Purposes Only)
