Aten Van Cryst DVI Extender w/ Audio. 1080i(60m), 1080p(40m). EQ compensation. VE600A-AT-G

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.

• Extends the distance between DVI source and DVI display device
• Long distance transmission – up to 60 m
• Uses Cat 5e cable to connect the local and remote units
• Features ATEN EDID technology that allows transmission over one Cat 5e cable
• Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) 1080i (60 m)
• Audio enabled
• Adjustable EQ compensation control
• Supports widescreen formats
• Rack mountable
• HDCP Compatible



Function		VE600AL	VE600AR
Connectors	Video In	1 x DVI-D Female (White)	N/A
	Video Out	N/A	1 x DVI-D Female (White)
	Audio In	1 x mini stereo jack (Green)	N/A
	Audio Out	N/A	1 x mini stereo jack (Green)
	Power	1 x DC Jack
	Unit to Unit	2 x RJ-45 Female (Silver)
Switch	EQ Switch	N/A	1 x 8-position switch
LEDs	Power	1 (Green)
	Link	N/A	1 (Green)
Video		1080i @ 60 m; 1080p @ 40 m; VGA, SVGA, SXGA, UXGA, WUXGA (1920x1200)
Power Consumption		DC5.3V, 2.05W	DC5.3V, 1.45W
Environment	Operating Temp.	0–50°C
	Storage Temp.	-20–60°C
	Humidity	0–80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	0.35 kg
	Dimensions (L x W x H)	9.13 x 5.60 x 2.40 cm



Package Contents

• 1x VE600A DVI Extender with Audio Local Unit
• 1x VE600A DVI Extender with Audio Remote Unit
• 2x Power Adapters
• 1x Rack Mount Kit
• 2x Grounding Wire
• 1x User Guide

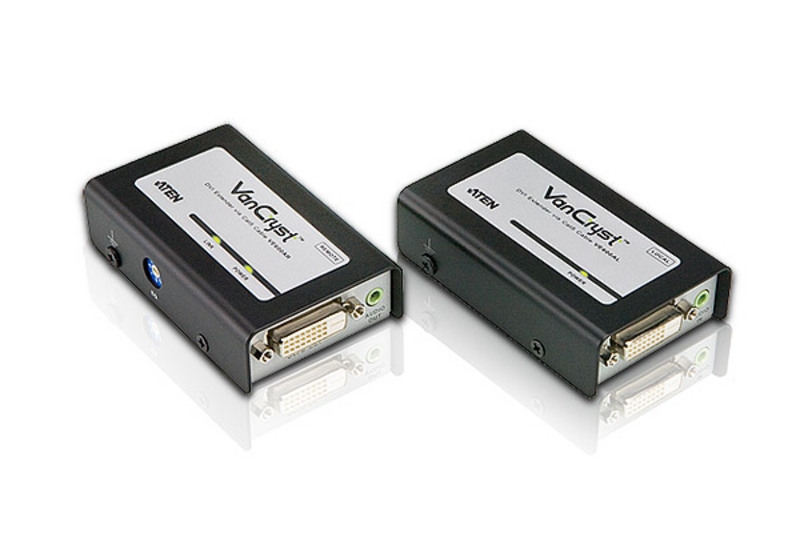

Click to view full size

(Pictures are For Illustration Purposes Only)
