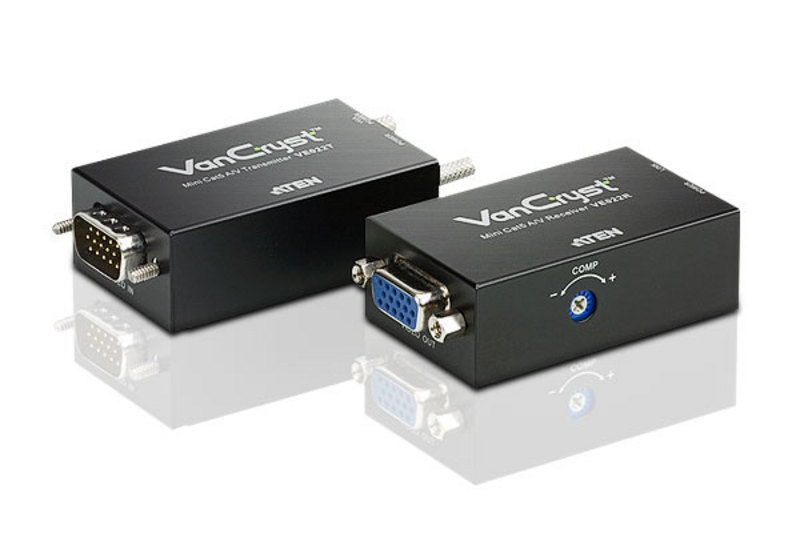

Aten Van Cryst Mini Cat5 VGA/Audio Extender. 1280x1024@60Hz (150m) VE022-AT-G

The VE022 Mini Cat 5 A/V Extender allows you to extend the distance between your video/audio source and display devices by as much as 150 meters, using a Cat 5e cable, providing an easy way to replace heavy and expensive VGA cables. With hot-plugging support, you can quickly add or remove the VE022 transmitter/receiver connected to the source/display device without having to power down devices.

The VE022 Mini Cat 5 A/V Extender is a compact, convenient and economical addition to your video/audio setup

Uses Cat 5e cable to extend audio and video transmission up to 150 m

Superior video quality – screen resolutions include 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(100 m) and 1280 x 1024@60Hz(150 m)

Adjustable Gain Control lets you manually adjust signal strength to compensate for distance

Audio enabled (mono)

No external power supply needed for transmitter

Convenient docking interface for mounting the VE022 on the display device.

Eliminates the need for bulky VGA cables

Easy installation



Function		VE022T	VE022R
Connectors	Video In	1 x HDB-15 Male (Black)	N/A
	Video Out	N/A	1 x HDB-15 Female (Blue)
	Audio In	1 x Audio Jack Female (Green)	N/A
	Audio Out	N/A	1 x Audio Jack Female (Green)
	Unit to Unit	1 x RJ-45 Female
	Power	1 x DC Jack
LEDs	Power	1 (Green)
	VGA Power	1 (Green)	N/A
	Link	N/A	1 (Orange)
Switch	Video Compensation Tuner	N/A	1 x Knob
Video		1920 x 1200 @ 60 Hz at 30 m 1600 x 1200 @ 60 Hz at 100 m 1280 x 1024 @ 60 Hz at 150 m
Cable Distance		150 m
Power Consumption		DC5V, 0.44 W	DC5V, 0.88 W
Environment	Operating Temp.	0 -50°C
	Storage Temp.	-20 - 60°C
	Humidity	0-80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	58 g	54 g
	Dimensions (L x W x H)	6.35 x 3.53 x 2.06 cm	6.42 x 3.53 x 2.06 cm

Package Contents

1x VE022T Mini Cat 5 A/V Transmitter

1x VE022R Mini Cat 5 A/V Receiver

1x Power Adapter

1x VGA Cable (35 cm)

1x Audio Cable (40 cm)

1x Dock Mount kit

1x User Guide
