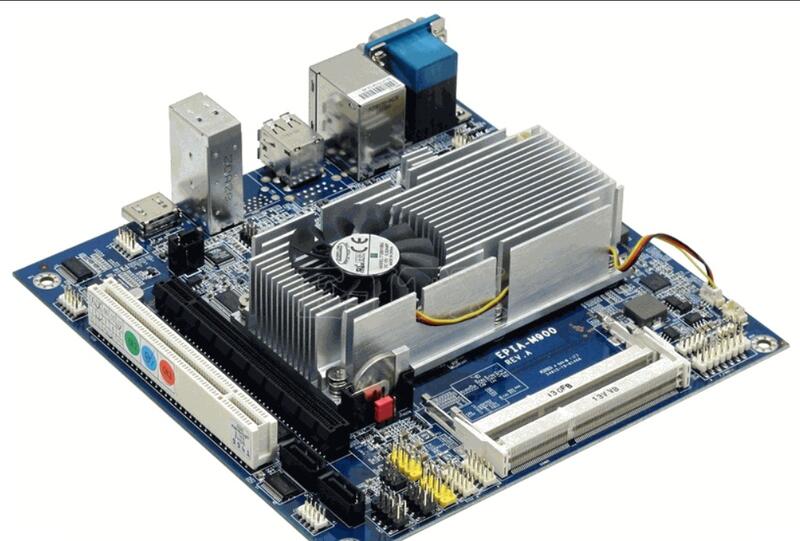

VIA EPIA M900-16L 1.6GHz Nano X2 E CPU, 1Gb LAN, 1 VGA, 1 HD

Information

Item ID

280765

Item Number

B-SMB-153

Manufacturer Part No

EPIA M900-16L

UPC/EAN Number

Our Stock **

Und5

Price

$322.90

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.:
Related Product(s)
Review Link(s)

** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	Und5

Features

Via EPIA M900-16L, 16GHz NanoX2E CPU, 1 GLAN, 1 VGA, 1HD Model Name EPIA-M900-16L Processor 1.6GHz VIA Nano™ X2 E (with fansink) Chipset VIA VX900 Unified Digital Media IGP chipset System Memory 2 x DDR3 1066 SDRAM SODIMM sockets Up to 8GB memory size VGA Integrated VIA Chrome9™ HC DX9 3D/2D graphics with VC1, MPEG-2, WMV9 and H.264 decoding acceleration Onboard Serial ATA 2 x SATA connectors Onboard LAN 1 x VIA VT6130 PCIe Gigabit Ethernet controller (optional for one more VIA VT6130 PCIe Gigabit Ethernet) Onboard Audio VIA VT2021 Onboard Super IO Fintek F81865-I Onboard I/O Connectors 2 x USB pin headers for 4 USB 2.0 ports 1 x USB client 1 x F_audio pin header for Line-out/Mic-in 1 x PS/2 keyboard/mouse pin header 2 x Digital I/O (GPI x 8 + GPO x 8) 1 x Front panel pin header 2 x Smart fan connectors for CPU/Sys 3 x Serial port pin headers for COM ports (from F81865-I) 1 x S/PDIF 1 x SMBUS 1 x PCI (on edge) 1 x PCIe x16 slot (with effective speed up to PCIe x8) 1 x 24-bit 2CH LVDS 1 x Backlight control for inverter power and brightness control 1 x LPC pin header (for programming) 1 x MFX pin header Back Panel I/O 1 x HDMI port 1 x VGA port 1 x Serial port 2 x GigaLAN ports & 4 x USB2.0 ports (default 1 GigaLAN port & 4 x USB2.0 ports)

3 X Audio Phone Jacks:
Line-out, Line-in and Mic-in (Vertical)
BIOS
AMI BIOS
8Mbit SPI flash memory
Operating System
Windows 7, Windows Embedded Standard 7, Windows XP, Windows Embedded Standard/Compact, Linux
Power
ATX connector
System Monitoring & Management
Wake-on LAN, Keyboard Power-on, Timer Power-on
System power management, AC power failure recovery
Watch Dog Timer
Operating Temperature
0°C up to 60°C
Operating Humidity
0% ~ 95% (relative humidity; non-condensing)
Form Factor
Mini-ITX
17 cm x 17 cm
Compliance
CE/FCC/BSMI/RoHS
COM (upper)/ VGA (bottom)
HDMI
PCIe x16
RJ-45 (upper)/ 2 x USB2.0 (bottom)
PCI
2 x USB 2.0
3 x Audio jacks
VIA Nano™ X2 E processor
ATX connector
VIA VX900 chipset
DDR3 SODIMM
2 x SATA

Click to view full size

(Pictures are For Illustration Purposes Only)
