9.5MM Thin Wall Shrinks TO 4.8MM Clear XLP10CL

Information

Item ID

279978

Item Number

G-XLP10CL

Manufacturer Part No

XLP10CL

UPC/EAN Number

9318674630296

Our Stock **

1-3days*

Price

$69.21

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Cabac
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	32		26/05/12 06:30PM

Features

Download Brochure

XLP Heatshrink ¹ Thin Wall: FLAME RETARDANT ¹ GENERAL PURPOSE

XLP tubing is a chemically cross-linked tubing that conforms toMIL-1-23053/5 class 3. It will withstand -75ªC to 135ªC for normaloperating conditions and 200ªC for short intervals. Black tubingwithstands ultraviolet radiation. Tubing can easily be shrunk with a heatgun or a heat tunnel. All tubings in this range are flame retarded exceptclear, which is flammable and conforms to MIL-1-23053/5 Class 2.

= Highly flexible
= Flame retarded
= Abrasion and impact resistant
= For use in all electrical and electronic applications
= In-house cutting facility available for cut sleeves
= Full range 1.5mm to 125mm diameter with 2:1 shrink
= Available in most colours on reels or 4ft (1.2m) lengths

XLP tubing has numerous uses in the electrical and associated industries,including insulation, colour coding and mechanical protection.

Catalogue No	Pre-Shrink Diameter	After Shrink Diameter	Recovered Wall Thickness	Standard Reel Qty
XLP1.5	1.5	0.75	0.43	200
XLP2.5	2.5	1.25	0.51	200
XLP3	3.0	1.5	0.51	200
XLP5	5.0	2.5	0.51	100
XLP7	7.0	3.5	0.64	50
XLP10	10.0	5.0	0.64	50
XLP13	13.0	6.5	0.64	50
XLP20	20.0	10.0	0.76	50
XLP25	25.0	12.5	0.89	50
XLP38	38.1	19.1	1.02	25
XLP51	50.8	25.4	1.14	25
XLP76	76.2	38.1	1.27	25
XLP102	101.6	50.8	1.40	25
XLP125	127.0	63.5	1.60	30

Technical Data

Compliant Standards: UL224 VW1 File No. E197423
Conformant Standards: MIL-1-23053/5; JIS
Material: Chemically, cross-linked, thermallystabilised flame retarded polyolefin
Continuous operating temp: -75ªC to +135ªC
Shrinkage temp: > 100ªC
Longitudinal shrinkage: < 5%
Tensile strength: 16 MPa
Breakdown voltage: 25 kV/mm wall thickness
Volume resistivity: 1.0 x 1014 ohm cm
Elongation at break point: 400%
Water absorption: 0.15% max
Flammability: Passed ASTM-D-2671
UV stability: Black tubing is stable
Voltage rating: 600V

Lengths and Colours Available

Colour	Suffix	Reel	4ft
Black	BK	Yes	Yes
Red	RD	Yes	Yes
White	WH	Yes	Yes
Blue	BL	Yes	Yes
Green	G	Yes	Yes
Yellow	Y	Yes	Yes
Clear	CL	Yes	Yes
Yellow/Green	YG	Some*	Yes

Note

= When ordering 4ft (1.2m) lengths,please add the suffix /4ft to thecatalogue number, i.e., XLP10BK/4FTis 10mm black by 4ft (1.2m) length.
= CABAC offers a service to pre cutlarge quantities of tubing tocustomer specifications. Pleasecontact our sales department.
= CABAC prefers to supply full reelsof tubing. If your requirements areless than a full reel, please considerbuying 4ft lengths.
= XLP125 is a special product andcertain colours may be availableonly on special order.

Note: 4ft lengths are not available inXLP102 and XLP125.

*Note: Reels of Yellow/Green areavailable in XLP5, 7, 13, 20, 25,38, 51YG

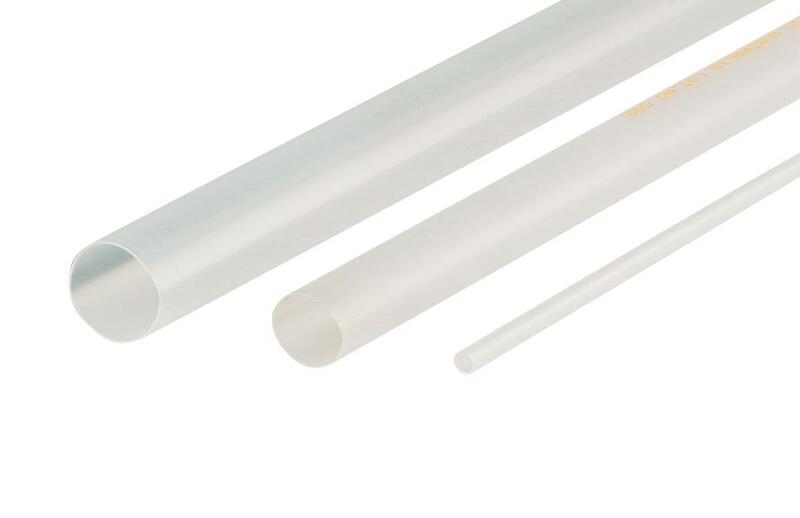

Click to view full size

(Pictures are For Illustration Purposes Only)
