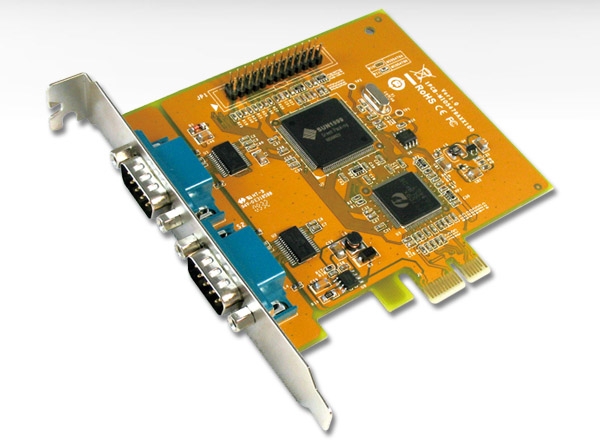

Sunix MIO5479A 2-port RS-232 Serial & 1-port Parallel PCI Express Multi-I/O Board

Information

Item ID

279597

Item Number

I-MIO5479A

Manufacturer Part No

MIO5479A

UPC/EAN Number

Our Stock **

1-3days*

Price

$67.95

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Sunix
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	21		25/05/12 10:31PM

Features

Introduction

The majority of today´s motherboards are not equipped with any RS-232 or parallel port. With SUNIX MIO5479A Multi I/O board, users can expand two RS-232 and one IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further. SUNIX MIO5479A is compatible with PCI Express x1, x2, x4, x8 and x16 lane and PCI/PCI-x Bus, allowing the board to be installed in virtually any PC system. Furthermore, SUNIX MIO5479A Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.

Features

Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
Designed to meet PCI Express Base Specification Revision 1.1.
High reliability SUNIX SUN1989 16C950 compatible Multi-IO controller on-board.
Expands two RS-232 serial port with communication speed up to 115.2Kbps.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ±2KV ESD protection for all serial signals.
Support IEEE 1284-1994 parallel port standard
ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
Plug-n-Play, I/O address and IRQ assigned by system.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.

Specifications

Description
Product Description	2-port RS-232 & 1-port Parallel PCI Express Multi-I/O Board
General
Interface	RS-232 and IEEE1284
Controller	SUNIX SUN1989 (16C950 UART Compatible)
Bus	PCI Express one lane (x1)
IRQ & IO	Assigned by System
Serial Communication
Interface	RS-232
No. of Port	2-port
FIFO	128 byte (Hardware)
Signal	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate	50 bps to 115.2 Kbps
Data bit	5,6,7,8
Stop bit	1,1.5,2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	±2KV ESD protection for each signal Human Body Model (HBM)
PCB connector	DB9 Male
Parallel Communication
Interface	IEEE1284
No. of Port	1-port
FIFO	16 byte (Hardware)
Signal	SPP/ECP/EPP/BPP
Speed	Maximum 1.8MBps
PCB connector	13x2 Pin Header
Cable Connector	DB25 Female
Driver Support
Microsoft Client	Windows XP/Vista/7 (X86/X64)
Microsoft Server	Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded	Windows XP Embedded/POS Ready 2009/Embedded System 2009
Linux	Linux 2.4.x / 2.6.x
DOS	DOS
Regulatory Approvals
Hardware	EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software	Microsoft WHQL Windows • Microsoft Client: XP/Vista/7 (X86/X64) • Microsoft Server: 2000/2003/2008 (X86/X64)
Environment
Operation Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85°C (-4 to 185°F)
Dimension
PCB Dimension	101 x 90 mm
Bracket	Standard 121 mm
Bracket Space	2

Note: * Do not support LPT Key Locker Parallel device. * LPT port does not support legacy 278/378 ISA address under Windows nor Linux operation systems, but only DOS mode.
