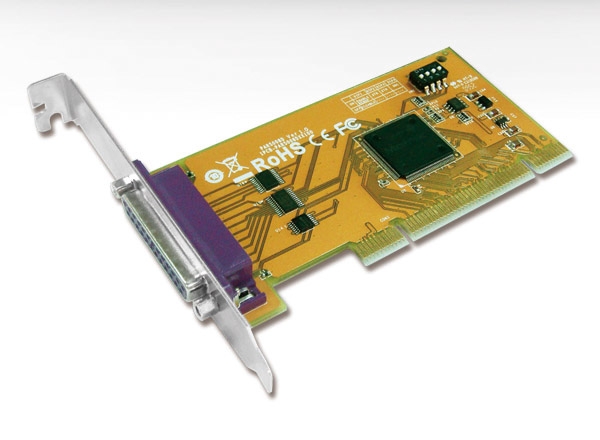

Sunix PAR5008D 1-port Remapable IEEE1284 Parallel Universal PCI Board

Information

Item ID

279596

Item Number

I-PAR5008D

Manufacturer Part No

PAR5008D

UPC/EAN Number

Our Stock **

1-3days*

Price

$74.25

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Sunix
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	1		25/05/12 10:31PM

Features

Introduction

SUNIX PAR5008D PCI Remap Parallel card enables users to expand one additional real ECP/EPP/SPP/BPP communication LPT port on their PC-based system for connecting their parallel devices. Furthermore, this board can be installed as a fully featured I/O mapped parallel port as 278, 378, and 3BC legacy ISA address under Microsoft Windows and DOS operation systems. User can connect software protection dongles, JTAG chip programmers, data acquisition, machine process control, scientific measurement systems, and other parallel devices as well as computer's native parallel port. SUNIX PAR5008D Remap card is designed with SUNIX high performance and realizable parallel connectivity controller, UL7512EQ and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation applications.

Features

High reliability SUNIX UL7512EQ Parallel controller on-board.
Expand single IEEE1284 compatible DB-25 type Parallel LPT port on system.
Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
Compliance with PCI 33MHz Version 3.0/2.3/2.2/2.1 specification.
Support IEEE 1284-1994 parallel port standard
ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
Support legacy ISA address (278, 378, 3BC) or standard PCI Plug-n-Play modes.
Install as a fully featured I/O mapped as computer's native parallel LPT port.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.

Specifications

Description
Product Description	1-port Remap IEEE1284 Parallel Universal PCI Board
Parallel Communication
Interface	IEEE1284
Controller	SUNIX UL7512EQ
Bus	Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port	1-port
IO	378, 278, 3BC or PCI Plug-n-play Assigned by System
FIFO	16 byte (Hardware)
Signal	SPP/ECP/EPP/BPP ( Auto-switching )
Speed	Maximum 1.8MBps
PCB connector	DB25 Female
Protection	±2KV ESD protection for each signal Human Body Model (HBM)
Driver Support
Microsoft Client	Windows 98/XP/Vista/7 (X86/X64)
Microsoft Server	Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded	Windows XP Embedded/POS Ready 2009/Embedded System 2009
Linux	Linux 2.4.x / 2.6.x
DOS	DOS
Regulatory Approvals
Hardware	EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS
Software	Microsoft WHQL Windows • Microsoft Client: XP/Vista/7 (X86/X64) • Microsoft Server: 2000/2003/2008 (X86/X64)
Environment
Operation Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85°C (-4 to 185°F)
Dimension
PCB Dimension	120 x 61 mm
Bracket	Standard 121 mm
Bracket Space	1

Support All Devices Requiring Hardware DB25-Pin Connection

The DB 25-pin connector of this board is suitable for connection with Printer requiring parallel interface, Scanners, LapLink, Zip Drive, Tape Drive, LS-120 Drive, CD-R/RW, EPROM Programmer, Intelligent UPS, Plotter, Bank Passbook Printer, software protection dongles, JTAG chip programmers, data acquisition, machine process control, scientific measurement systems, etc.
