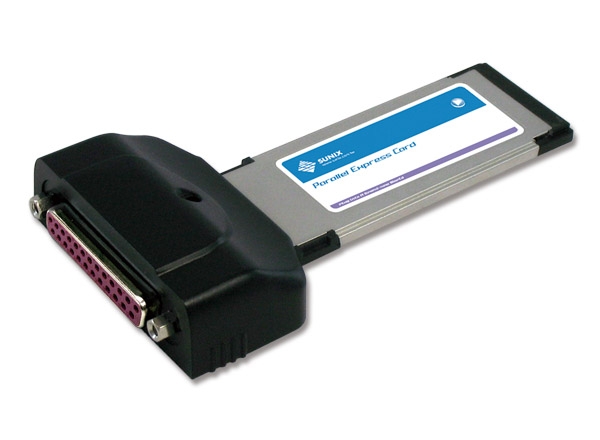

Sunix ECP1000 1-port IEEE1284 Parallel ExpressCard

Features

(Pictures are For Illustration Purposes Only)

Sunix


Description:




Introduction


SUNIX ECP1000 was created to meet the need of the ExpressCard market where notebooks, desktops, and docking stations could add one additional IEEE1284 Parallel LPT port via a single slim-type 34/54mm ExpressCard slot. ECP1000 equips SUNIX high performance and realizable chipset, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications. Users will benefit from ExpressCard plug-n-play ease of use, which eliminates the need to open the chassis to add new features.


Features

  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Full single-lane (or x1) PCI Express throughput.
  • Compliant with ExpressCard 34 and 54mm slot.
  • High reliability SUNIX SUN1989 compatible Parallel controller on-board.
  • Expands one IEEE1284 Parallel LPT port with communication speeds up to 1.8MBps.
  • Support IEEE 1284-1994 parallel port standard with mode switch automatically.

    ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)

    SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port).
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.






Specifications:


Specifications


DESCRIPTION


Product Description

1 port IEEE1284 Parallel ExpressCard


SERIAL COMMUNICATION


Interface

SUN1889 (Parallel Compatible)

Controller

PCI Express one lane (x1)

No. of Port

1-port

IRQ & IO

Assigned by System

FIFO

16 byte (Hardware)

Speed

Maximum 1.8MBps

Mode

SPP/ECP/EPP/BPP

PCB connector

DB44 Female


DRIVER SUPPORT


Microsoft Client

XP/Vista/7 (X86/X64)

Microsoft Server

2000/2003/2008 (X86/X64)

Microsoft Embedded

XP Embedded/POS Ready 2009/ Embedded System 2009/Embedded Standard 7

Linux

Linux 2.4.x / 2.6.x

DOS

DOS


REGULATORY APPROVALS


Hardware

EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,

FCC Part 15 Class B, RoHS

Software

Microsoft WHQL Windows

? Microsoft Client: XP/Vista/7 (X86/X64)

? Microsoft Server: 2000/2003/2008 (X86/X64)


ENVIRONMENT


Operation Temperature

0 to 60°C (32 to 140°F)

Operation Humidity

5 to 95% RH

Storage Temperature

-20 to 85°C (-4 to 185°F)


DIMENSION


Iron Case

80(W) x 34(D) x 5(H) mm

Plastic Case

39(W) x 64(D) x 20(H) mm
