VanCryst HDMI Repeater plus Audio De-embedder VC-880



Information
Item ID.:277867
Item Number.:H-VC-880
Manufacturer Part No.:VC-880
UPC/EAN Number.:
Our Stock **.: 1-3days*
Price.:
$156.09
Quantity .:
QR 2D barcode To bookmark with mobile device
Product link.: No link
Manufacturer's link .: Aten/Altusen
Related Product(s)
Review Link(s)
* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock and Freight Information

Stock Information
 Our Qty in StockAvailability and ETA
Our own stock0Usually 1-3 days (when supplier has stock)
 Supplier's Qty in StockAvailability and ETAUpdated
Supplier one
125/05/12 10:31PM

Features
Aten/Altusen



VanCryst HDMI Repeater plus Audio De-embedder


The VC880 is an HDMI Repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, users can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high quality audio output. With support for 3D TV formats, the VC880 is ideal for users who want to enjoy high defi nition video with their choice of high defi nition audio output on TVs, projectors, A/V receivers or speakers.




Repeats HDMI input signal up to 15 meters
Extracts HDMI audio signal and outputs as additional audio source
Supports optical / coaxial digital audio and analog stereo audio
HDMI and HDCP compatible
Super Video Quality – up to 1920x1080 (1080p)
Firmware upgradable
CH2/CH5.1/Auto mode audio channel selection
Supports 3D video
Supports Audio on/off switch for HDMI output

Expandable to three levels – provides three levels of audio output for one HDMI at distance up to 45 m

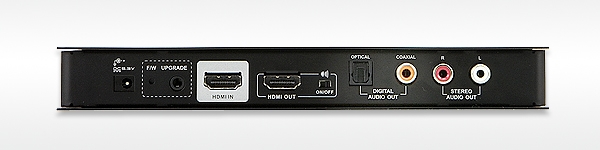

Connectors Input HDMI 1 x HDMI Female (Black)
Output HDMI 1 x HDMI Female (Black)
Audio 1 x TOSLINK (Optical)
1 x RCA (Coaxial)
2 x RCA (Stereo)
Power 1 x DC Jack
F/W Upgrade 1 x 4-conductor 3.5 mm Jack
LEDs Power
1 (Green)
Switches Audio Channel 1 x Dip Switch
HDMI Audio On/Off 1 x Dip Switch
F/W Upgrade 1 x semi-recessed pushbutton
Video
Up to 1920 x 1080
Power Consumption
DC5.3V, 0.8W
Environment Operation Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.46 kg
Dimensions
(L x W x H)
20.00 x 8.20 x 2.5 cm



(Pictures are For Illustration Purposes Only)
