Hypertec Wall MT Encl 6RU 600W 600D 368H HRWM6RU

Download Brochure

Rack Dimensions

* Note: Key sets for front door and side panels (and swing frame) are different.

Key Features
• Made from SPCC High quality cold roll steel with approximate thickness of 1.5mm for mounting and 1.0mm for other parts
• IP20 Protection grading
• The side rails are depth adjustable
• RU positions are marked for easy alignment and placement of equipment. Rails are marked on both sides of the rail
• All units are pre-fitted with earth continuity leads between doors and chassis
• Epoxy polyester powder paint (Manex Black) with textured finish
• Degreasing, and phosphoric acidification to the original metal to provide very strong bonding between paint and metal
• Improved scratch and scuff resistance
• Sturdy heavy duty welded construction for dependable applications which conforms to
    o ANSI/EIARS-310-D,
    o IEC297-2
    o DIN41491
    o DIN41494
    o Part7, GB/T3047.2-92 Standards
• New accessories are available e.g. L-bracket shelves, lockable drawer and vertical cable management
• Wall mount racks come configured with L-bracket shelves and vent cover plates
• The door is a solid steel frame with a mounted tempered glass panel which provides a clear view of installed components
• Improved features in new range:
   o Lighter weight construction for easier wall mounting
   o Large access holes on back for cable entry in from wall

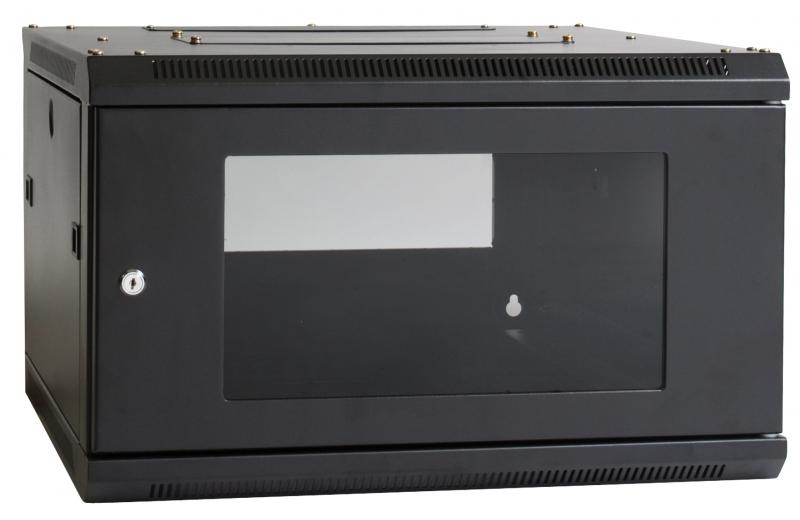

Click to view full size

(Pictures are For Illustration Purposes Only)
