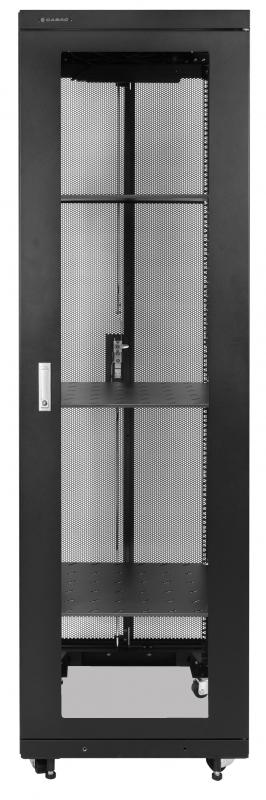

Hypertec R19 Rack 42RU 600W 1000D 2078H HR42RU1

Information

Item ID

277018

Item Number

G-HR42RU1

Manufacturer Part No

HR42RU1

UPC/EAN Number

9318674894131

Our Stock **

1-3days*

Price

$1,350.31

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Hypertec
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one			26/05/12 06:30PM

Features

Download Brochure

Rack Dimensions

Code	RU Height	Width mm	Depth mm	Height mm	Weight kg	Fixed shelves	Cooling fans cutouts	Cage nuts & screws	Power board
HR42RU1	42	600	1000	2078	138.6	3	3	40	6 way

Compatible Parts

Part	Fixed tray	L bracket	Base plate	Sliding shelf	Cantilever shelf
Code	HRFT750	HRLB750	HRBP1000	HRSS750	HRCS300, HRCS400

Inclusions
• 1 x frame rack
• 1 x 5mm glazed safety glass door with ventilated surround
    o Security handle & keyed lock
    o Earth continuity cabling door to chassis
    o Doors can be hinged from right (default) or left on enclosure
• 2 x rear bifold ventilated doors
    o One with security handle and keyed lock
    o Both with earth continuity cabling door to chassis
• 2 x 2 side panels with optional keyed cam lock
• 4 x 19" mounting rails fitted to side rails so that they can easily be moved
• 4 x adjustable Leveling feet with access from inside and under cabinet
• 4 x castors on base plate
• 3 x fixed shelves
• 1 x Ceiling fan module (two 120mm fans) in demountable metal box
• Cutouts for fan modules:
    o 3 fan modules
• 1 x pre-installed 6 Way power board on horizontal rail
• Grounding connections on doors
• Set of cage nuts for installation - 40 piece sets cagenuts

Key Features
• Made from SPCC High quality cold roll steel with approximate thickness of 1.5mm for mounting and 1.0mm for other parts
• IP20 Protection grading
• The side rails are depth adjustable
• RU positions are marked for easy alignment and placement of equipment. Rails are marked on both sides of the rail
• All units are pre-fitted with earth continuity leads between doors and chassis
• Epoxy polyester powder paint (Manex Black) with textured finish
• Degreasing, and phosphoric acidification to the original metal to provide very strong bonding between paint and metal
• Improved scratch and scuff resistance
• Sturdy heavy duty welded construction for dependable applications which conforms to
    o ANSI/EIARS-310-D,
    o IEC297-2
    o DIN41491
    o DIN41494
    o Part7, GB/T3047.2-92 Standards
• New accessories are available e.g. L-bracket shelves, lockable drawer and vertical cable management
• Come configured with fans, shelves, power board and spare cage nuts.
• Easily removable door with retractable
• Door is a solid steel frame with a mounted tempered glass panel.
• The door also has hardened glass insets that offer superior performance over other brands that use acrylic.
• The doors can be hinged from either right (default) or left side.
• Perforated front door is available as an optional extra.
• Rear bifold perforated doors for easy access in limited space and provides ample ventilation.
• Supplied with a fan module with 120mm ceiling cooling fans. These fans are in a demountable metal box and can be adapted to fit on the 19” rail inside the cabinet.
• Designed for loads of up to 800kg mounted on the 19" rails.
• Heavy duty castors are used. (Castors are capable of carrying 1000kg combined.)
• A baying kit allows the floor mounted racks to be joined together to create rack bays.
• Improved features in new range:
    o Removable side panels - easy installation of components. RU42 cabinets have two side panels per side. (Keyed cam locks are available as an optional accessory)
    o The mounting feet can be accessed from the inside the cabinet with a star screw driver. (Mounting feet are acpable of carry 1000kg combined.)
    o The cabinet is supplied with brackets attaching it to a pallet. The same brackets can be used to prevent tipping when installed.
    o New accessories are available for cable management.
    o Ample space is provided between the front door and the 19" rail for mounting cable management accessories.
    o Shelves are extend to the maximum possible depth inside the cabinets.

Click to view full size

(Pictures are For Illustration Purposes Only)
