Asus P8H61-M LE/USB3 REV3.0, H61 REV3.0 2xDDR3 PCIe x16 Gbl SATA3 USB3.0 VGA DVI uATX

Information

Item ID

275489

Item Number

B-P8H61-M_LE/USB3_REV3.0

Manufacturer Part No

P8H61-M LE/USB3 REV3.0
P8H61-M-LE-USB3V3
P8H61-M-LEUSB3V3

UPC/EAN Number

Our Stock **

1-3days*

Price

$76.23

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: Asus
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	>5		26/05/12 10:29PM
Supplier two	339 (ignore this, cost price is higher than our retail price)		25/05/12 08:43AM
Supplier three	0		26/05/12 10:30PM

Features

CPU Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/
Support Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for Intel® CPU support list.

Chipset Intel® H61(B3) Express Chipset
Memory 2 x DIMM, Max. 16 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) * According to Intel® SPEC, the Max. 16GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Please refer to www.asus.com or user manual for Memory QVL.
* When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots 1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI

VGA Dual independent displays support: DVI and D-Sub
Supports Single-link DVI with max. resolution up to 1920x1200 @60Hz
Supports D-Sub with max. resolution up to 2048x1536 @75Hz
Supports Microsoft® DirectX 10.1
Intel® Quick Sync Video Technology Support
Storage Intel® H61(B3) Express Chipset
4 xSATA 3.0 Gb/s ports
LAN Realtek® 8111E Gigabit LAN controller

Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
USB Intel® H61(B3) Express Chipset:
- 8 x USB 2.0/1.1 ports (4 ports at the mid-board, 4 ports at the back panel)
Asmedia USB3.0 controller:
- 2 x USB 3.0/2.0 ports (blue, at the back panel)

ASUS Unique Features ESD
GPU Boost
100% All High-quality Conductive Polymer Capacitors
ASUS Anti-Surge Protection
ASUS EPU
ASUS TurboV
ASUS Fan Xpert
ASUS EFI BIOS
ASUS AI Suite II
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2™

Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x D-Sub
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0
4 x USB 2.0/1.1
3 x Audio jacks
Internal I/O Connectors 2 x USB 2.0/1.1 connector(s) support additional 4 USB 2.0/1.1 ports
1 x TPM connector
4 x SATA 3.0Gb/s
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x LPT connector
1 x S/PDIF Out connector
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector
1 x COM connector
1 x System Panel connector

BIOS 32 Mb Flash ROM , EFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS

Accessories User's manual
1 x I/O Shield
2 x SATA 3.0Gb/s cables
1 x Support DVD
Form Factor uATX Form Factor
9.6 inch x 8.0 inch ( 24.4 cm x 20.3 cm )

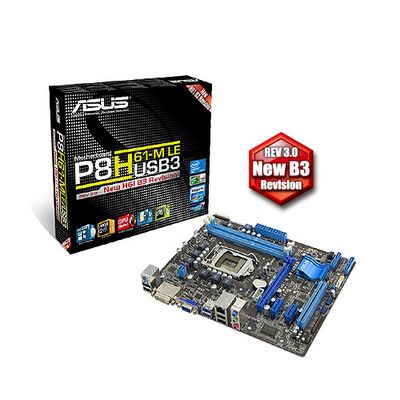

p8h61-m le/usb3 rev3.0 asus intel connector support

Click to view full size

Click to view full size

p8h61-m le/usb3 rev3.0 asus intel connector support image 3

Click to view full size

(Pictures are For Illustration Purposes Only)
