Asus P8H61-M-LE MB, Socket 1155, Intel H61 Chipset, 2x DDR3, SATA2, USB2.0, 8CH Audio, 1x GbLAN, uATX P8H61-M-LEV3

Information

Item ID

270594

Item Number

B-P8H61-M-LEV3

Manufacturer Part No

P8H61-M-LEV3
P8H61-M LE REV3.0

UPC/EAN Number

Our Stock **

1-3days*

Price

$71.73

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: Asus
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	>5		26/05/12 10:29PM
Supplier two	798		25/05/12 08:43AM
Supplier three	5+		26/05/12 10:30PM

Features

Specifications

CPU	Intel® Socket 1155 for 2^nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset	Intel® H61(B3)
Memory	2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Graphic	Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Supports DirectX 10.1
Expansion Slots	1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 1 x PCI
Storage	Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), blue
LAN	Realtek® 8111E , 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC 887 8-Channel High Definition Audio CODEC *¹
USB Ports	Intel® H61(B3) chipset : 10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board)
Special Features	ASUS EPU : - EPU TurboV GPU Boost ASUS Exclusive Features : - AI Suite II - Anti-Surge - ESD Guards - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s)
Accessories	User's manual I/O Shield 2 x SATA 3Gb/s cable(s)
BIOS	32 Mb Flash ROM EFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS
Form Factor	uATX Form Factor 9.6 inch x 8.0 inch ( 24.4 cm x 20.3 cm )
Note	*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

p8h61-m-lev3 asus connector intel memory

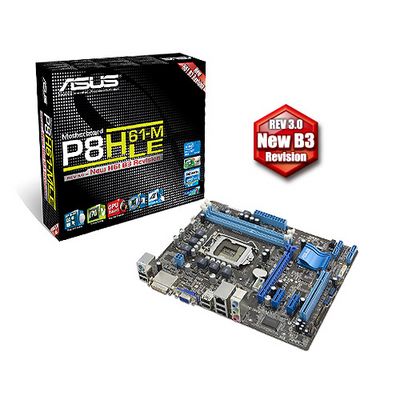

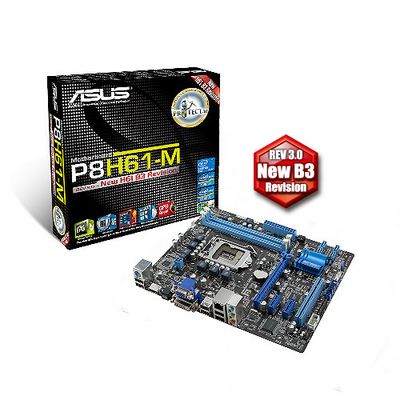

Click to view full size

Click to view full size

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)
