Digital Rcd Tester - 240V T2712EL

Information

Item ID

268254

Item Number

Y-T2712EL

Manufacturer Part No

T2712EL

UPC/EAN Number

9318674685371

Our Stock **

1-3days*

Price

$409.46

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Generic
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	270		26/05/12 10:30PM

Features

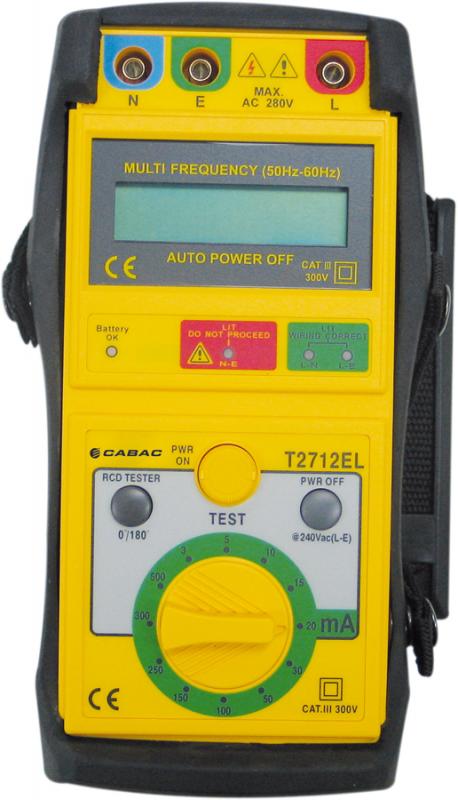

T2712EL - DIGITAL RCD TESTER - TIME & CURRENT

The TopTronic T2712EL is a compact hand held RCD tester. It is designed for professional use to obtain accurate values of the Trip Time with the selection on a dial switch of the trip current.

Resistors are used to pass the trip current between earth and active. Therefore a correction factor in percentage is available on the display for adjustment according to the line voltage.

The trip time is measured to a maximum of 3.000 seconds, while the fault current is selectable on a range from 3 to 500mA. The unit has been designed for ease of operation whilst maintaining safety, reliability and accuracy.

Features:

Three basic tests
        - Wiring test
        - Line Voltage to Earth
        - Tripping time
Menu driven and easy to use.
Has a LED wiring check function to check wiring prior to test.
The phase at which to start the test can be selected (0 or 180°).
Dynamic battery check.
Microprocessor controlled.
Tough rugged meter, designed to give accurate measurements in harsh environments.

To complete the test, connect the unit, and check the LED displays that indicate the wiring is correct. Check that the line voltage is within tolerance. Set the trip current on the selector and hit the test button. Once the test is complete, the operator can view the following on the LDC display.

Circuit voltage
Percentage error current (from nominal voltage)*
Disconnection time
Polarity at opening
Over Temperature Protection

* Voltage fluctuations are taken in to account by the microprocessor, and the percentage error current will be the same as the voltage fluctuations shown on the display.

Safety and Conformance

Safety - Meets IEC 1010-1 CAT III 300V
EMC - Meets EN55011,

Overload Protection

Over-voltage, Over-temperature and Fuse protected.

**Ranges and Accuracy**
Function	Range	Accuracy
System Voltage	240V	±2% ±1V
Voltage Tester	20~280VAC	±1V ±2%
Trip Settings	3,5,10,15,20,30,50, 100,150,250,300,500mA	% Proportional to Voltage
Disconnection Time	0 - 2.999 Seconds	±2% ±1mS
Timer	1mS	±2mS
Phase Start Selection	- 180º	-
Operating Temperature	-5 to 45ºC	-

Ordering information

TOPTRONIC part number T2712EL
Each unit is supplied in a robust case with test leads, batteries and instruction manual.
Batteries: - 6 of AA batteries (included)
Size: 200 x 85 x 55mm
Weight: 540g

Click to view full size

(Pictures are For Illustration Purposes Only)
