Standard Autocheck Digital Multimeter TBM682

Information

Item ID

267068

Item Number

Y-TBM682

Manufacturer Part No

TBM682

UPC/EAN Number

9318674696902

Our Stock **

1-3days*

Price

$111.45

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Generic
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	140		26/05/12 10:30PM

Features

TBM682 Standard Autocheck DMM
TBM685 Delux Autocheck DMM

These two meters are designed with a high degree of protection. With special features such as a sliding scale impedance relative to the test voltage known as AutocheckTM and 12 kV lightning surge (1.2/50ms) makes this a leading feature test instrument. The meters are double molded, easy to use, comfortable to hold and a safe and reliable tool for use in extremely rugged conditions. Choose from two meters a basic unit or a deluxe meter with extra features of range select, capacitance, diode test, continuity diode test.

Features

3 3/5 Digit 6000 Count
CAT IV
Updates 5 Times per Second
AutocheckTM V & Ω
EF Detection
APO Idle for 3 min
Data hold

TBM685 Only
Diode Test
Continunity Test
Capacitance

Safety and Compliance

UL Classified to IEC61010-1 2nd edition (2002), CAT IV 1000V AC &DC. Pollution degree 2.
Transient Protection 12kV lightning surge (1.2/50ms)
Meets EN61326 (1997, 1998/A1), EN61000-4-2 (1995) & EN61000-4-3 (1996)

Ranges and Accuracy

Feature	Range	Accuracy
Feature	Range	TBM682	TBM685
DC Voltage	6 V 60 V 600 V 1000V	1.3%+2d 1.3%+1d 1.2%+4d 1.5%+8d	0.8%+2d 0.8%+1d 1.2%+4d 1.5%+8d
AC Voltage	6, 60 V 600V 1000V	2.5%+3d 2.5%+6d 2.8%+8d	1.5%+3d 2.0%+6d 2.8%+8d
Resistance	6kΩ 60kΩ 600kΩ 6MΩ	0.9%+4d 0.9%+4d 0.9%+1d 1.2%+4d	0.9%+4d 0.9%+4d 0.9%+1d 1.2%+4d
Diode Test TBM685	< 1.6VDC, 0.25mA, Response < 100ms	-	-
Continuity TBM685	600Ω , Threshold 50 to 250Ω, Response < 100ms	-	2.0%+6d
Capacitance TBM685 Only	100 nF, 1000 nF, 10 µF, 100 µF, 2000 µF	-	3.5%+5d 2.5%+2d 2.5%+5d
Display Voltage vs. typical Impedances	4.2kΩ 90 pF nominal Initial Lo-Z AC/DCV Input Impedance & TBM685 Hi-Z 5MΩ, 90 pF nominal 18kΩ @100V 125kΩ @ 300V 320kΩ @ 600V 460kΩ @ 1000V
Consumption APO	2µA
Power Consumption	2MA Typical
Low Battery	± 4.5 V
Operating Temperature	-10° to 50° C (Accuracy specifications at 23°C ± 5°C & less than 75% RH)

Ordering Information

Toptronic part no. TBM682 or TBM685
Each unit comes in a gift box with operating manual, batteries installed and CAT IV 1000V Test Leads
Batteries: Standard 9V
Size: L173 x W83 x H448.5 mm mm
Weight: 300g

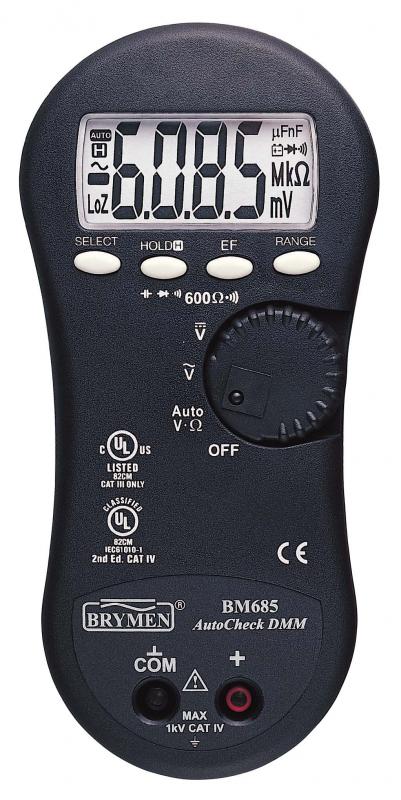

Click to view full size

(Pictures are For Illustration Purposes Only)
