Professional Analogue Multi Meter T7014

Information

Item ID

267062

Item Number

Y-T7014

Manufacturer Part No

T7014

UPC/EAN Number

9318674685838

Our Stock **

1-3days*

Price

$115.37

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Generic
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	201		26/05/12 10:30PM

Features

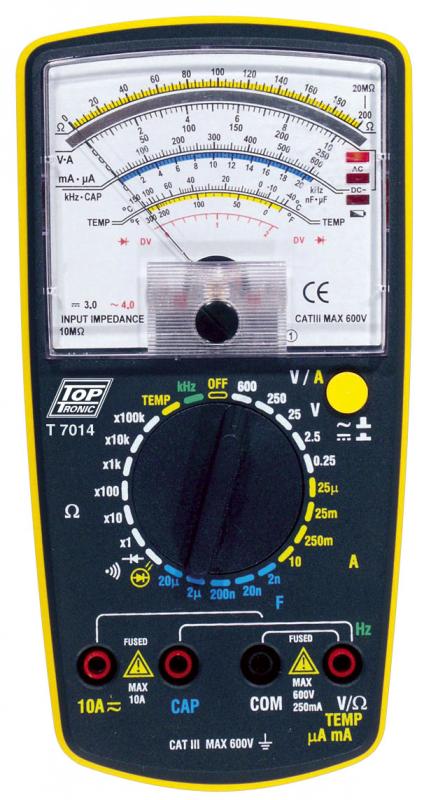

T7014 Professional Analogue Multimeter

A well priced, multi-featured analogue multimeter. Ideal for work in laboratories, training institutions, workshops, or whenever a clear analogue indication is required. Analogue meters give clear visual indication of pulses and electrical measurements. Analogue meters always give actual true RMS readings regardless of the waveform, thus saving on expensive digital true RMS meters. If you work with electronics this could be a well-priced solution for a top quality meter.

Features

8 Functions
20 Ranges
10 MΩ Imput Impedance
Fused Current Input
Needle Mirror for Error of Parallax
Large, clear and colour coded screen
Operating Temperature 0 to 40 °C at RH < 80%
Diode Test Current 1mA per ± 2.5 V (Continuity Buzzer)

Compliance and safety.

IEC 61010 CAT III 600V

Ranges and Accuracy

Function	Range	Accuracy
AC Volts	0.25/2.5/25/250/600V	± 4% f.s.
DC Volts	0.25/2.5/25/250/600V	± 3% f.s.
AC/DC Current	2.5/25/250/mA+10A	AC ± 4% f.s. DC ± 3% f.s.
Resistance	200/2k/20k/200k/2M/20MΩ	± 3% f.s.
Capacitance	2/20/200nF/2/20µF	± 3% f.s
Frequency	0-20 kHz	± 4% f.s.
Temperature	-40° - 150°C -40°F - 300° F	± 5% f.s.

Ordering Information
TopTronic Part No: T7014
Unit is supplied with test leads, battery, and manual..
Battery: 9V 6F22
Fuses: 0.25A/250V 5 x 20mm and
10A/250V 6 x 25mm Fast Blow
Size: 180 x 91 x 48mm
Weight: 330g

Also Available:
T7014-TP - meter with temperature probe
T7014TEMP - probe only

Click to view full size

(Pictures are For Illustration Purposes Only)
