S/Steel Tie 520MM H/Duty SST520-HD/316

Information

Item ID

257691

Item Number

Y-SST520-HD/316

Manufacturer Part No

SST520-HD/316

UPC/EAN Number

9318674614203

Our Stock **

1-3days*

Price

$62.17

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Generic
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	2495		26/05/12 10:30PM

Features

Download Brochure

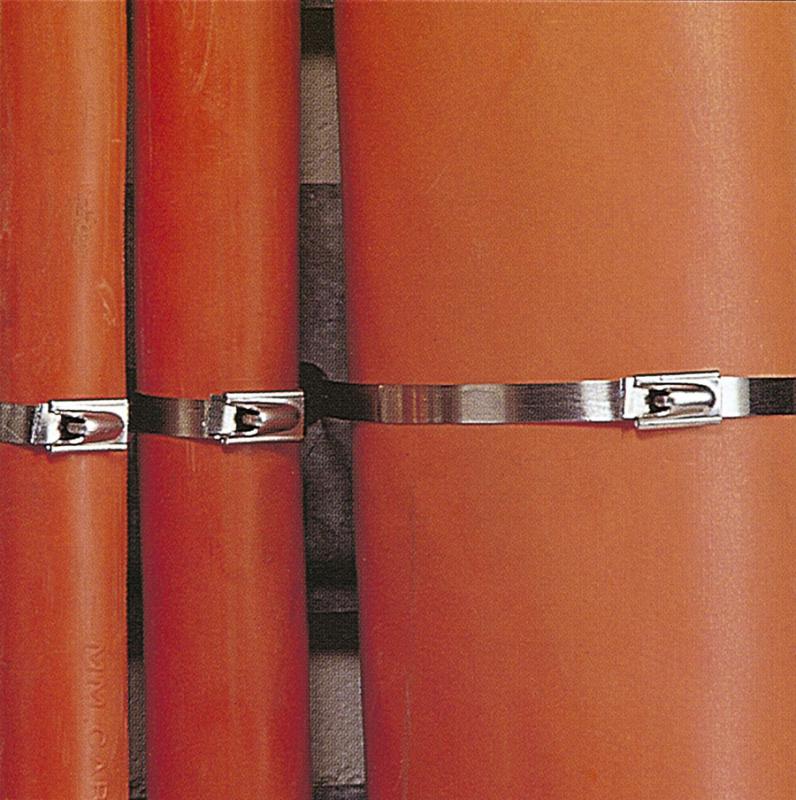

Stainless Steel Heavy Duty Cable Tie - 520mm

The Stainless Steel Cable Tie - Premium range provides a quick, effective way of securing cables that are in a hostile environment. A unique ball bearing locking mechanism ensures that the tie can be quickly and easily installed, but not undone. Installation is much quicker than traditional strapping systems.

Made from 316 non magnetic stainless steel, the premium range of cable ties are heavy duty with an off-set tip to speed insertion of the tie. Applications include flame-proof installations, the chemical industry and long-term external exposure.

Stainless Steel Heavy Duty Cable Tie - 520mm Features
• Improved fastening system
• Resistant to most hostile environments
• Standard width and heavy duty width available
• 20 years limited warranty
• Ties packed in sturdy cardboard boxes

Material	Stainless Steel 316
Tensile strength	60 kg/mm²
Operating temperature	-80°C to +500°C
Loop tensile strength	Standard range 45kg Heavy duty range 110kg

Resistant to the following chemicals:
• Petrol • Benzine • Alcohol • Acetone • Sodium hydroxide
• Sodium phosphate • Formic acid • Acetic acid • Sulphuric acid • Seawater

Ordering Information

Heavy Duty Width
Part No.	Max Bundle Diameter (mm)	Approx Length (mm)	Approx Width (mm)	Min. Loop Tensile Strength (kg)	Pack Qty
SST200-HD/316	50	201	7.9	113	50
SST360-HD/316	102	360	7.9	113	50
SST520-HD/316	152	520	7.9	113	50
SST680-HD/316	203	680	7.9	113	50
SST838-HD/316	254	838	7.9	113	50
SST1000-HD/316	298	1000	7.9	113	50
SST1500-HD/316	450	1500	7.9	113	50

Standard Width
Part No.	Max Bundle Diameter (mm)	Approx Length (mm)	Approx Width (mm)	Min. Loop Tensile Strength (kg)	Pack Qty
SST200/316	50	201	4.6	44	100
SST360/316	102	360	4.6	44	100
SST520/316	152	520	4.6	44	100
SST680/316	203	680	4.6	44	100
