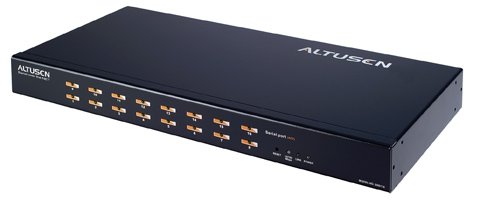

Altusen 16 Port Serial Over The Net SN0116

The SN0116 Serial Over the NET is a control unit that provides remote serial access to up to sixteen servers or other serial IT devices (hubs, routers, power management devices, etc.).Via TCP/IP connection,up to sixteen users can logged in simultaneously from any computer connected to the Internet, whether it is down the hall or half way across the world. Each user is able to control a separate port thus all eight attached devices can be accessed concurrently

• Complete Centralized Remote Serial Management:
  - Works in tandem with other Altusen/ATEN applicance-such as the PN0108 and PN9108-allowing administrators to manage a wide range of data center devices through IP connections.
  - Remote access to Serial over IP appliances, and attached devices, in centralized manner.
• Security:
  - Multi level secure user logins.
  - Port-specific access rights.
  - Supports Active Directory via CC Management.
  - Supports RADIUS.
• Convenient Access:
  - Browser access with an intuitive GUI.
  - Telnet Client-SSH,Telnet and third-party client (PuTTY,etc.)compatible Console terminal.
  - Direct port addressing-via SSH to any Serial Over IP port(bypassing the SN0116).
  - Dial in Modem and Direct Access via serial applications (such as Hyper Terminal and PPP), or IP applications(such as SSH and Telnet).
  - Modem sharing capability via IP-forwarding(Modem support).
• SUN Ready:
  - Hardware break suppression ensures uninterrupted Solaris server operation.
• Network Interfaces:
  - TCP/IP,UDP/IP,HTTP,HTTPS,NTP,SNMP,Telnet,SSH,SSL,PPP.
  - 10Base-T/100BaseTX,auto sense,DNS,DHCP,ARP,RADIUS Ping.
• Serial Connectivity:
  - VT320 support-backward compatible to VT52(VT52,100,220).
  - Hardware and software flow control.
  - Real COM port support;Raw TCP Mode support.
• Alarms and Alerts:
  - Client applications;Buzzer;SNMP Traps.
• OS Support:
  - Windows,Mac,Sun,Linux,Unix,AIX,DOS 6.2+.
• Code Set Support:
  - ISO646-US(US ASCII),ISO8859-15(Latin-9).
• General:
  - Rack mountable in 1U system rack.


Click to view full size

(Pictures are For Illustration Purposes Only)
