Altusen 16 Port Rackmount PS2-USB Kvmp with 17 LCD Touchscreen Display KL3116T-AX-AU

Information

Item ID

256054

Item Number

J-KL3116T-AX-AU

Manufacturer Part No

KL3116T-AX-AU

UPC/EAN Number

Our Stock **

1-3days*

Price

$3,222.80

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Aten/Altusen
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one			25/05/12 10:31PM

Features

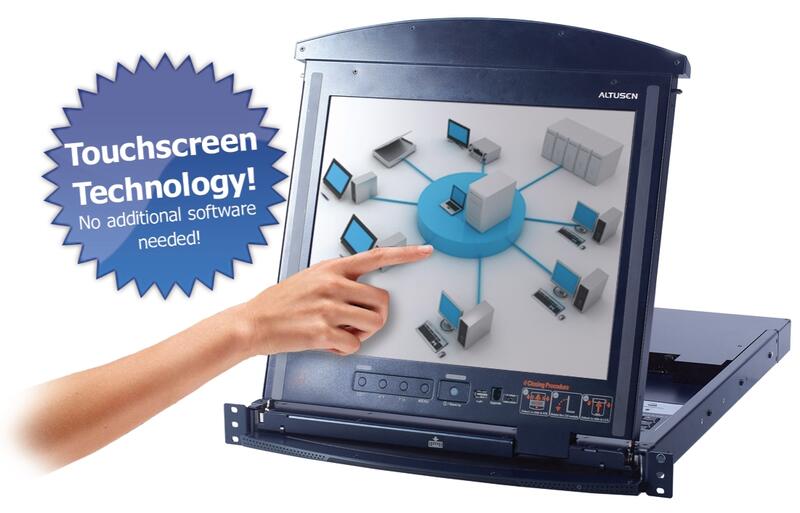

Altusen 16 Port Rackmount PS2-USB KVMP with 17 LCD Touchscreen Display

The KL3116T Dual Rail Touchscreen KVM Switch is an integrated LCD console and KVM (keyboard, video, and mouse) switch that offers secure access to 16 attached computers, and mounts in only 1U of rack space. It features an independently retractable 17" touchscreen LCD monitor and keyboard with built-in touchpad.
The KL3116T is ideal for industrial environments such as factory production lines, laboratories, and server rooms, or anywhere else an LCD KVM switch is required. Anyone working on a production line while wearing gloves knows the difficulty of trying to control on-screen testing programs with the use of a mouse. The KL3116T touchscreen is the easiest and most convenient way to solve problems with user interactive production line testing programs.

As many as 31 additional switches can be daisy-chained together, so that up to 512 computers can be controlled from a single keyboard, touchscreen, and mouse console. You can also conveniently share USB peripherals attached to the KL3116T with computers on the same level. The KL3116T is the first Dual Rail Touchscreen KVM Switch of its kind that requires no additional software to operate; simply connect the KL3116T to your installation and begin using it immediately.

Features:

Integrated KVM console with 17" LCD monitor in a Dual Rail housing
Space saving technology - up to two consoles (sharing one bus) can control up to 16 computers
Supports Touchscreen for control without drawing out the keyboard
Simple one-point and two-point touchscreen calibration including separate methods for calibrating the OSD (on-screen display) and attached computers with varying resolutions
Supports computers and KVM Switches with PS /2 or USB keyboards and mice
USB peripheral support for attached computers*
Conveniently located station and port selectors with LED displays to quickly switch to target computers
Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock - enables the console drawer to remain securely locked away in position when not in use
Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
Daisy- chain up to 31 additional KVM switches** to control up to 512 computers
No software required
Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard and mouse)
Supports External USB mouse
Convenient computer selection via mouse-driven, intuitive OSD menus and hotkeys
OSD tree structure makes finding and managing computers easy
Dual Rail - LCD monitor slides independently of the keyboard/touchpad
Hot pluggable - add or remove computers without powering down the switch
OSD port list automatically expands when new stations are added
OSD screen automatically adjusts to resolution changes
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Two-level password security - Administrator and up for four Users; only authorized users view and control the computers; separate profiles for each
Administrator/user password authorization for enhanced security protection; administrator access rights synchronized between master and slave stations
LCD power button helps save energy and prolong display's life
DDC emulation - video set tings of each computer are automatically adjusted for optimal output to the monitor
Standard 105-key keyboard
Keyboard status restored when switching computers
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
Two types of logout: manual and timed
Firmware upgradable
Multiplatform support - Windows 2000/XP/Vista, Linux, Unix, Sun, Mac and FreeBSD
