Altusen PCI KVM Over The Net PCI Card w/Virtual Media & Gui IP8000

Features

(Pictures are For Illustration Purposes Only)

Aten/Altusen

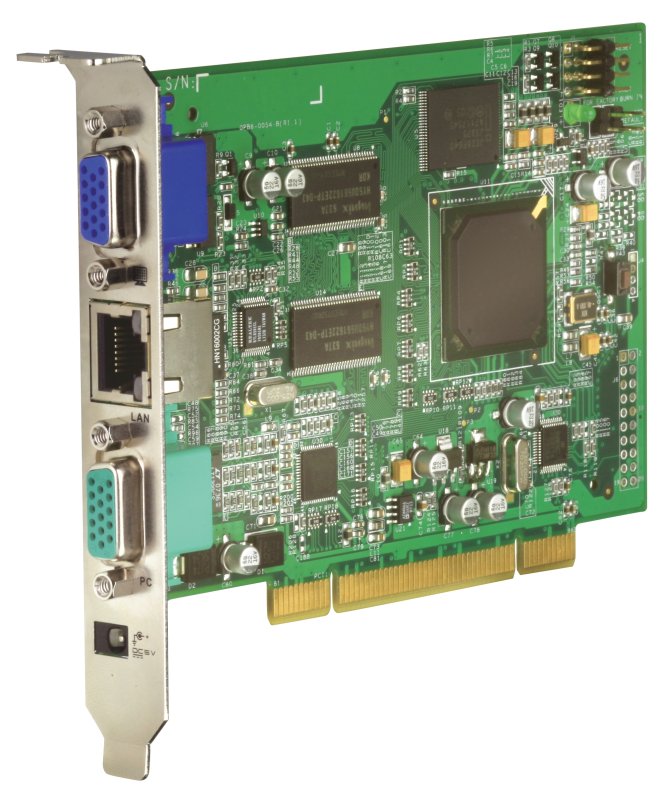

The IP8000 is a PCI card implementation of a control unit that provides 'over-IP' access and control of the server it is installed in. The IP8000 allows multi-platform access and control of the server from remote locations using a standard Internet browser or with stand-alone Windows and Java applications


Product Features
  • Standard PCI-sized card provides over-IP access and control of a remote server from anywhere in the world
  • Virtual media via USB 2.0 data transmission
  • Remote power control and reset support
  • Up to 64 user accounts - Up to 32 concurrent user logins for single-bus sharing
  • Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
  • External authentication support: RADIUS; LDAP; LDAPS; MS Active Directory
  • Web-based Windows and Java implementations allow the server to be controlled from any browser
  • Windows GUI and Java client software for non-browser access - the Java client works with practically all operating systems
  • Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP
  • Supports 10Base-T, 100Base-T
  • Superior video resolution* up to 1600 x 1200 @ 60Hz; 24-bit color depth for remote sessions
  • Bandwidth optimization via grayscale and video quality setting
  • Advanced security features include password protection and advanced encryption technologies
  • Secure 128-bit SSL encryption
  • Enable/disable browser operation
  • Three level authentication - Multi - Administrators, Users, Viewers
  • Event logging
  • Remote fi rmware upgrading
  • Host-side OS support– Windows ; Redhat 7.1 and above; FreeBSD, Novell




Specifications

Computer

Direct

1

Console Connections

1

Computer

Computer

Video/

Keyboard/

Mouse

1 x SPHD-15 Female (Green)

Video Out

1 x HDB-15 Female (Blue)

LAN Port

1 x RJ-45 Female

Power

1 x DC Jack

LEDs

Link

1 (Green)

10/100 Mbps

1 (Green / Orange)

Emulation

Keyboard/Mouse

USB

Video

1600 x 1200@60Hz; DDC2B

Power consumption

DC5V, 6W

Environment

Operating Temp.

0 - 50°C

Storage Temp.

-20-60°C

Humidity

0 - 80% RH, Non-condensing

Physical Properties

Weight

0.10 kg

Dimensions ( L x W x H )

15.35 x 12.00 x 2.15 cm


* The specification and pictures are subject to change without notice.


* All trademarks and logos are the properties of their respective holders.
