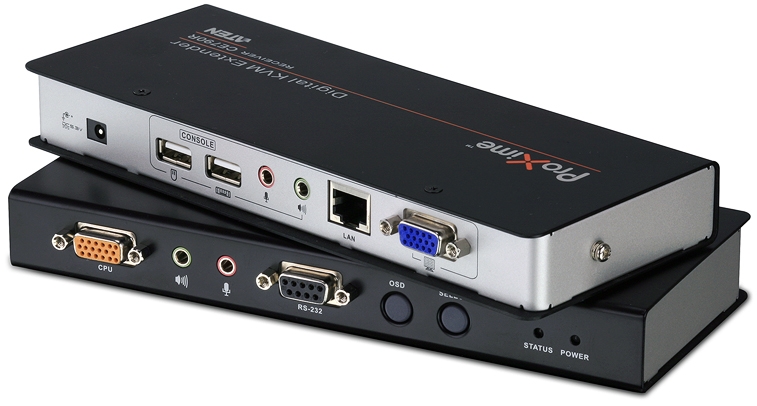

Aten USB IP Based Console Extender w/RS-232 port 1920x1080 over Intranet CE790-AT-U



The CE790 is a IP based KVM Extender with automatic cable detection (Auto-MDIX) and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse) anywhere on the intranet.

The CE790 improves on previous designs by: 1) the addition of an intuitive On Screen Display (OSD) on both the transmitter and receiver units for easy setup and operation 2) working over a standard TCP/IP LAN via inexpensive Cat 5e cable, allowing point-to-point, point-to-multipoint, and multipoint-to-multipoint administration without the need for an additional KVM switch * and 3) the addition of an RS-232 port, on both the transmitter and receiver Units - to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners.

* The CE790 can be installed in point to point, point to multipoint and multipoint to multipoint configurations. Multipoint configurations require a separate purchase.







	Remotely access computers on your KVM installation via intranet
	Dual console operation - control your system from both the transmitter and receiver USB consoles
	OSD (On Screen Display) on both the transmitter and receiver units
	No software required - an HTTP server is embedded in both units
	Built-in ASIC for greater reliability and compatibility
	USB Keyboard and USB Mouse Ports
	RS-232 serial ports - allows you to connect to a serial terminal for configuration, or serial devices such as touchscreens and barcode scanners
	Audio enabled
	USB overcurrent detection and prevention
	High resolution video - up to 1920 x 1080
	Supports widescreen formats
	Ultra-High quality video mode
	Hot pluggable
	Rack mountable
	Firmware upgradable
	Auto-MDIX - automatically detects cable type











Function			CE790T	CE790R
Connectors	Console Ports	Keyboard	1 x USB Type A Female (White)
		Video	1 x HDB-15 Female (Blue)
		Mouse	1 x USB Type A Female (White)
		Speaker	1 x Mini Stereo Jack Female (Green)
		Mic.	1 x Mini Stereo Jack Female (Pink)
	KVM Ports	Keyboard/ Video / Mouse	1 x SPHD-17 Female(Yellow)	N/A
		Speaker	1 x Mini Stereo Jack(Green)
		Mic.	1 x Mini Stereo Jack (Pink)
	RS-232		1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
	Power		1 x DC Jack (Black)
	LAN		1 x RJ-45 Female (Black)
Pushbuttons	OSD		1 x Pushbutton
	Select		1 x Pushbutton
LEDs	Status		1 (Green / Orange)
	Power		1 (Green / Red)
Emulation	Keyboard / Mouse		USB
Power Consumption			DC5.3V/6.62W	DC5.3V/6.36W
Video			Up to 1920 x 1080
Environment	Operating Temp.		0 - 50°C
	Storage Temp.		-20 - 60°C
	Humidity		0-80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.50 kg	0.48 kg
	Dimensions (L x W x H)		20.00 x 8.00 x 2.50 cm
