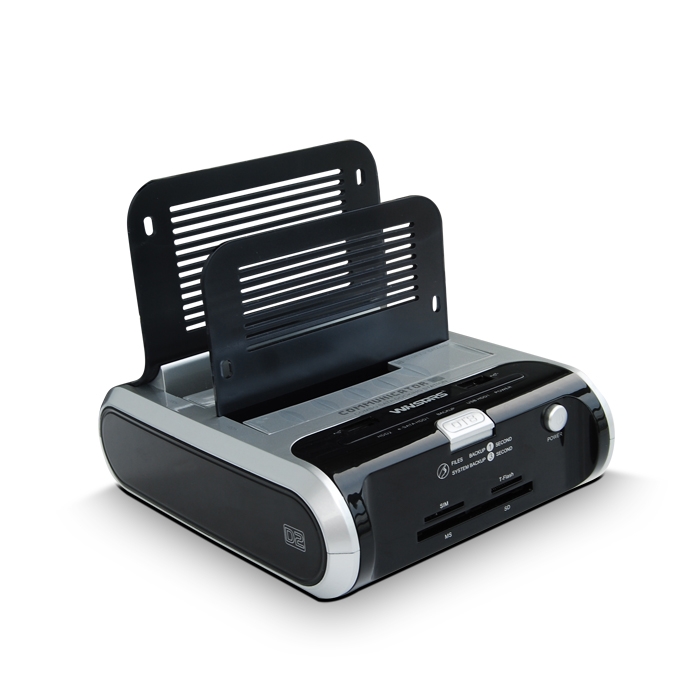

WinStars 2.5”/ 3.5’’ Dual HDD + USB2.0 + eSATA + Hub + Card Reader Docking Station WS-ST320D
Information
Item ID .: 255129 Item Number .: E-WS-ST320D Manufacturer Part No .: WS-ST320D UPC/EAN Number .: Our Stock ** .: 1-3days* Price .:
Quantity
.:
QR 2D barcode
Product link .: No linkManufacturer's link
.: WinStars Related Product(s)
Review Link(s)
* Indication only, please consult the supplier stock level below.
Stock Information
Our Qty in Stock Availability and ETA Our own stock 0 Usually 1-3 days (when supplier has stock) Supplier's Qty in Stock Availability and ETA Updated Supplier one
19 25/05/12 10:31PM
Features
Communicator D2 Combo is a multi purpose storage device which including HDD/ Flash Disk or Wireless optional input for data storage. Application for system backup / video editing / enlarge drive capacity from two different size HDD appear to one drive. Create diverse value-added applications besides flash card reader such as E-commerce, phone book/ SMS edit/ save/ backup for mobile SIM cards through the smart card interface. Convenience communication through Bluetooth /WiFI for data transfer from Communicator D2 Combo to other devices such as Mobile phone/ MP3 etc...
eSATA or USB host to Dual 2.5”/ 3.5” SATA drive
Running on eSATA to SATA HDD and fulfill USB Input function simultaneously
1.5Gpbs or 3Gpbs link rate with auto-negotiation
Enhanced 2nd Generation PICO 1.9 SteelVine Storage Processor . PICO is a simple RISC based embedded Central Processing Unit that reduced Instruction set from Computer system that be improve the performance of the whole System
Virtualized multiple storage devices into one or many units, Mutli-Drive spanning, Drive partition or act as a JBOD Port Multiplier
Host side NCQ support over SATA, adding with FIFO per devices for reads and writes
Hot Plug support
Compliant with USB 2.0 Specifications
Full and High-Speed rates (12~480Mb/s) USB operation
Support for Drive Locking using ATA proprietary commands
OTG backup program with Backup Button
LED indicate with Storage Device
SteelVine Manager Software Tools enable you to configured setup with eSATA or USB host connections from your PC to the Communicator D2 Combo
Flash Media Card Reader
High-speed USB 2.0 interface; backward compatible with USB 1.1
Supports multiple flash card interfaces and the latest flash card specifications
SD/MMC, MS/MSPro, SM/xD and MicroSD/MMCMicro. (SD/MMC bus interface for dedicated MicroSD™/MMCMicro™/T-Flash™ slot)
Supports SIM port to enable Subscriber Identity Module Card phone book/SMS managements
Enhanced NEC powered USB2.0 Vertical Port
Compliant with Universal Serial Bus Specification Revision 2.0
Certified by USB Implementers forum and granted the USB 2.0 High-Speed Logo
Supports Over-current detection and individual or ganged power control
Provide wide insertion space for large USB device
Optional
Features:
eSATA or USB 2.0 host to dual 2.5”/ 3.5” SATA drive
Flash Media Card Reader (SD+MS/ M2+SM/ XD Sim Card)
Enhanced NEC powered USB2.0 Vertical Port x 2
Optional package I
Optional package II
Specifications:
Requirments: PC Systems
Intel Pentium-III 500MHz equivalent or faster
CD-ROM Drive
64MB Memory (Minimum)
250MB of free disk space
Super VGA (800x600) or higher resolution display with at least 256 colors
Mouse or compatible pointing device
Windows 2000/XP/2003 Server or Windows Vista with the latest Service Packs
SATA connection: Communicator D2 Combo and associated software drivers, or any other third-party SATA host controller with Port Multiplier support
USB connection: USB 1.0 or 2.0 direct host connection or USB hub
Macintosh Systems
PowerMac G5, MacBook Pro or Mac Pro
CD-ROM Drive
Mouse or compatible pointing device
MacOS X,10.4.8 (or later)
SATA connection: Communicator D2 Combo and associated software drivers, or any other third-party SATA host controller with Port Multiplier support
USB connection: USB 1.0 or 2.0 direct host connection or USB hub
Package Contents:
Communicator D2 Combo Docking Station
Power Adapter 12V / 5A with Power Cable
SATA Cable: eSATA to eSATA Cable
USB Cable
User Manual
CD Software Tools
(Pictures are For Illustration Purposes Only)
