Sunix PCI Express 4 Port RS-232 Serial Card SER5456A

Information

Item ID

254427

Item Number

I-SER5456A

Manufacturer Part No

SER5456A

UPC/EAN Number

Our Stock **

1-3days*

Price

$139.66

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: Sunix
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one			25/05/12 10:31PM

Features

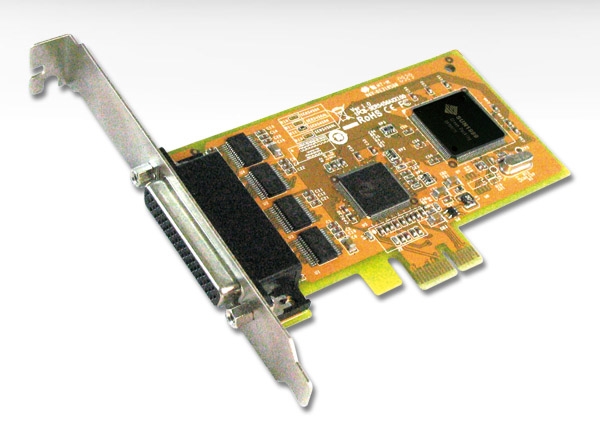

Sunix PCI Express 4 Port RS-232 Serial Card

SUNIX COMCARD-4PEX, PCI Express serial communication boards meet the PCI Express Base Specification Revision 1.1.
It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus. The majority of today’s motherboards are not equipped with serial ports or only have one. With the SUNIX PCI Express serial board, you can add four serial ports to your system, allowing you to add more serial devices.
SUNIX COMCARD-4PEX card has a 128-byte onboard FIFO buffer and is compatible with 16C950 UART specifications.
It is designed with the SUNIX UART controller, SUN1999 and is built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features:

Adds 4 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
High speed SUN1999 16C950 compatible UART controller on-board.
Designed to meet PCI Express Base Specification Revision 1.1.
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, RoHS, and has Microsoft WHQL approval.
Supports Microsoft Windows, Linux, and DOS.

Specifications:

Description
Product Description	4-port RS-232 PCI Express Serial Board
Serial Communication
Interface	RS-232
Controller	SUNIX SUN1999 (16C950 UART Compatible)
Bus	PCI Express one lane (x1)
No. of Port	4-port
IRQ & IO	Assigned by System
FIFO	128 byte (Hardware)
Signal	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate	50 bps to 115.2 Kbps
Data bit	5,6,7,8
Stop bit	1,1.5,2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge
PCB connector	DB44 Female
Driver Support
Microsoft Client	Windows XP/Vista/7 (X86/X64)
Microsoft Server	Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded	Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009
Linux	Linux 2.4.x / 2.6.x
DOS	DOS
FreeBSD	FreeBSD 5.3~5.5 / 6.0~6.4
QNX	QNX 6.3.2/6.4.0
* IBM OS/2	WARP 3/WARP 4
* SCO UnixWare	UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems	Solaris 10
Note : “ * ” Supported by special inquiry.
Regulatory Approvals
Hardware	EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software	Microsoft WHQL Windows Microsoft Client: XP/Vista/7 (X86/X64) Microsoft Server: 2000/2003/2008 (X86/X64)
Environment
Operation Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85°C (-4 to 185°F)
Dimensions
PCB Dimensions	109 x 67 mm
Bracket	Standard 121 mm
Bracket Space	1
