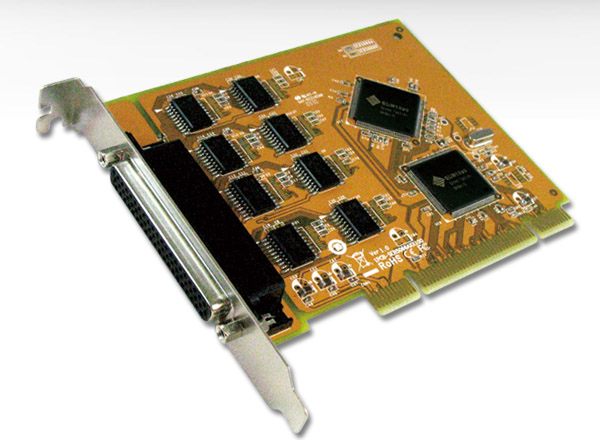

Sunix PCI 8 Port RS-232 Serial Card SER5066A

Information

Item ID

254060

Item Number

I-SER5066A

Manufacturer Part No

SER5066A

UPC/EAN Number

Our Stock **

1-3days*

Price

$191.69

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: Sunix
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	8		25/05/12 10:31PM

Features

Introduction

SUNIX SER5066A, Universal PCI serial communication board, allows users to add or expand eight RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER5066A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

Expands 8 independent RS-232 serial port with communication speeds up to 115.2Kbps.
High reliability SUN1999 16C950 compatible UART controller on-board.
Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ± 2KV ESD protection for all serial signals.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.

Specifications

Description
Product Description	8-port RS-232 Universal PCI Serial Board
Serial Communication
Interface	RS-232
Controller	SUNIX SUN1999 (16C950 UART Compatible)
Bus	Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port	8-port
IRQ & IO	Assigned by System
FIFO	128 byte (Hardware)
Signal	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Baud rate	50 bps to 115.2 Kbps
Data bit	5,6,7,8
Stop bit	1,1.5,2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	±2KV ESD protection for each signal Human Body Model (HBM)
PCB connector	DB62 Female
Driver Support
Microsoft Client	Windows XP/Vista/7 (X86/X64)
Microsoft Server	Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded	Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009
Linux	Linux 2.4.x / 2.6.x
DOS	DOS
FreeBSD	FreeBSD 5.3~5.5 / 6.0~6.4
QNX	QNX 6.3.2/6.4.0
* IBM OS/2	WARP 3/WARP 4
* SCO UnixWare	UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems	Solaris 10
Note : “ * ” Supported by special inquiry.
Regulatory Approvals
Hardware	EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software	Microsoft WHQL Windows • Microsoft Client: XP/Vista/7 (X86/X64) • Microsoft Server: 2000/2003/2008 (X86/X64)
Environment
Operation Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85°C (-4 to 185°F)
Dimension
PCB Dimension	125 x 100 mm
Bracket	Standard 121 mm
Bracket Space	1
