TP-LINK Gigabit Lan Card (10/100/1000) TG-3269

Information

Item ID

253262

Item Number

M-TG-3269

Manufacturer Part No

TG-3269

UPC/EAN Number

Our Stock **

Price

$13.72

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: TP-LINK
Related Product(s)
Review Link(s)

** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	5+
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	>5		26/05/12 10:29PM
Supplier two	441		25/05/12 10:31PM

Features

TP-Link Gigabit Lan Card (10/100/1000)

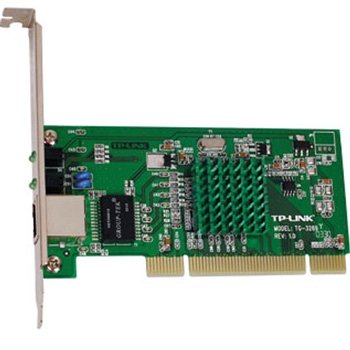

TG-3269 is a 10/100/1000Mbps, 32Bit PCI-bus Gigabit Ethernet adapter. With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Full range of drivers are provided for major Operating Systems.

Features:

Comply IEEE802.1P, IEEE802.1Q, IEEE802.3 10 Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
32bit, 33/66 MHZ PCI bus master capability
10/100/1000Mbps triple speed, full/half duplex operation
Up to 1000Mbps when full duplex operation mode
IEEE 802.3x Full Duplex flow control and supports both symmetrical and asymmetrical flow control.
IEEE 802.1p, 802.1Q ,802.3ab compliant
PCI Specification Revision 2.2 compliant
Easy-to-view led for diagnostics
Automatic MDI/MDIX crossover for all 3 speeds
Large transmit & receive FIFO
Auto configure IRQ and I/O address

Specifications:

Standard Conformance:	IEEE802.1p, IEEE802.1Q, IEEE802.3 10Base-T, IEEE802.3u 100Base-Tx, IEEE802.3ab 1000Base-T
Access Method:	CSMA/CD
PCI Bus:	32bit, 33/66MHz PCI Bus
Number of Ports	Single 10M/100M/1000m Utp/STP port
LED Indicators:	one for 10M link/Activity; one for 100M Link/Activity, one for 1000M Link/Activity, one for Full-duplex
Network Media (Cable):	10Base-T: UTP category 3, 4,5 Cable Up To 100M100Base-Tx: UTP category 5 cable up to 100m1000Base-T: UTP category 6 cable up to 100m (recommend to use cat.5e cable)
Drivers Support:	Netware 4.2, 5.x and 6.x ODI driver Microsoft Window 98, Windows 98SE, Windows ME Windows 2000, Windows XP Windows NT Linux
