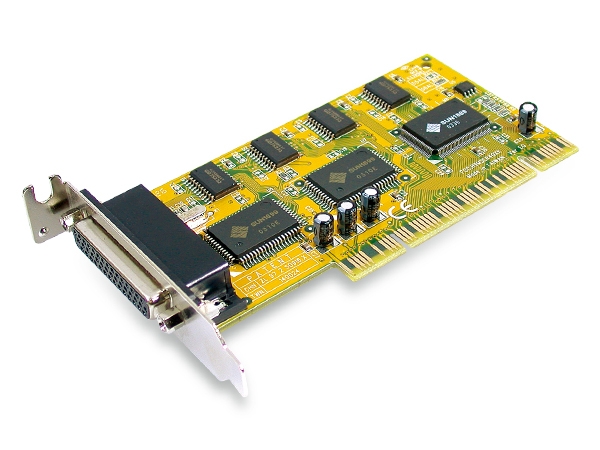

Sunix 4 Port Serial IO Card Low Profile PCI Card SER5056AL

Features

(Pictures are For Illustration Purposes Only)

Sunix


Description:



Introduction


SUNIX SER5056AL, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5056AL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.


Features

  • Expands 4 independent RS-232 serial port with communication speeds up to 115.2Kbps.
  • High reliability SUN1999 16C950 compatible UART controller on-board.
  • Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
  • Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 2KV ESD protection for all serial signals.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.
  •



Specifications:


Specifications


DESCRIPTION


Product Description

4-port RS-232 Universal PCI Low Profile Serial Board


SERIAL COMMUNICATION


Interface

RS-232

Controller

SUNIX SUN1999 (16C950 UART Compatible)

Bus

Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1

No. of Port

4-port

IRQ & IO

Assigned by System

FIFO

128 byte (Hardware)

Signal

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI

Baud rate

50 bps to 115.2 Kbps

Data bit

5,6,7,8

Stop bit

1,1.5,2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, Xon/Xoff, RTS/CTS

Protection

±2KV ESD protection for each signal Human Body Model (HBM)

PCB connector

DB44 Female


DRIVER SUPPORT


Microsoft Client

Windows XP/Vista/7 (X86/X64)

Microsoft Server

Windows 2000/2003/2008 (X86/X64)

Microsoft Embedded

Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7

Linux

Linux 2.4.x / 2.6.x / 3.x

DOS

DOS

FreeBSD

FreeBSD 5.3~5.5 / 6.0~6.4

QNX

QNX 6.3.2/6.4.0

* IBM OS/2

WARP 3/WARP 4

* SCO UnixWare

UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0

* Sun Microsystems

Solaris 10

Note : “ * ” Supported by special inquiry.


REGULATORY APPROVALS


Hardware

EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS

Software

Microsoft WHQL Windows

• Microsoft Client: XP/Vista/7 (X86/X64)

• Microsoft Server: 2000/2003/2008 (X86/X64)


ENVIRONMENT


Operation Temperature

0 to 60°C (32 to 140°F)

Operation Humidity

5 to 95% RH

Storage Temperature

-20 to 85°C (-4 to 185°F)


DIMENSION


PCB Dimension

120 x 68 mm

Bracket

Low Profile 80 mm

Bracket Space

1
