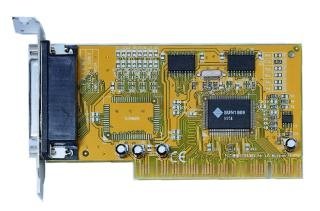

Sunix Dual Port Serial IO Card Low Profile PCI Card SER5037AL

Features

(Pictures are For Illustration Purposes Only)

Sunix


Details:


SUNIX SER5037AL, Universal PCI serial communication board, allows users to add or expand two RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure.


SUNIX SER5037AL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.


Specifications:

SERIAL COMMUNICATION

  • Interface: RS-232
  • Controller: SUNIX SUN1989 (16C950 UART Compatible)
  • Bus: Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
  • No. of Port: 1-port
  • IRQ & IO: Assigned by System
  • FIFO: 128 byte (Hardware)
  • Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
  • Baud rate: 50 bps to 115.2 Kbps
  • Data bit: 5,6,7,8
  • Stop bit: 1,1.5,2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: None, Xon/Xoff, RTS/CTS
  • Protection: ±2KV ESD protection for each signal Human Body Model (HBM)
  • PCB connector: DB44 Female

DRIVER SUPPORT

  • Microsoft Client: Windows XP/Vista/7 (X86/X64)
  • Microsoft Server: Windows 2000/2003/2008 (X86/X64)
  • Microsoft Embedded: Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7
  • Linux: Linux 2.4.x / 2.6.x / 3.x
  • DOperating System: DOS
  • FreeBSD: FreeBSD 5.3~5.5 / 6.0~6.4
  • QNX: QNX 6.3.2/6.4.0
  • * IBM OS/2: WARP 3/WARP 4
  • * SCO UnixWare: UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
  • * Sun Microsystems: Solaris 10

Note: “ * ” Supported by special inquiry.

REGULATORY APPROVALS

  • Hardware: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
  • Software:
    • Microsoft WHQL Windows
    • • Microsoft Client: XP/Vista/7 (X86/X64)
    • • Microsoft Server: 2000/2003/2008 (X86/X64)

ENVIRONMENT

  • Operation Temperature: 0 to 60°C (32 to 140°F)
  • Operation Humidity: 5 to 95% RH
  • Storage Temperature: -20 to 85°C (-4 to 185°F)

DIMENSION

  • PCB Dimension: 120 x 63 mm
  • Bracket: Low Profile 80 mm
  • Bracket Space: 1
Print this page
Information
SKU/Item No.:248317
Manufacturer Part No.:SER5037AL
UPC/EAN Number.:4710747388380
Our Stock **.:
Price.:
$39.68
Quantity .:
QR 2D barcode QR 2D SER5037AL
Product link.: No link
Manufacturer's link .: Sunix
