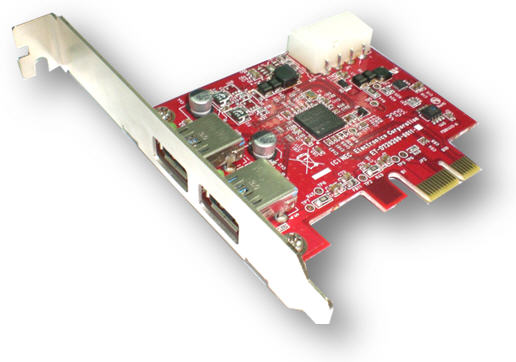

Condor MP7202 PCIe provides 2x external USB 3.0 ports

Condor MP7202 PCIE USB 3.0 x 2 ext.

· Supports PCIe Base Specification Revision 2.0.

· Single-lane ( x1) PCI Express throughput rates up to 5 Gbps

· Compliant with Universal Serial Bus 3.0 specification Revision 1.0.

· Compliant with xHCI(eXtensibleHost Controller Interface) specifications Revision 0.95.

· Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

· Supports USB data transfer rate of 1.5/12/480/5000 Mbps.

· Expands two external USB3.0 Super-Speed ports on the system.

· Each USB port supplies maximum +5V / 900mA power output to USB device.

· Built-in 4-pin power connector for receiving extra power supply from system.

· Hot-swapping feature allows you to connect/disconnect devices without powering down the system.

SUPPORTED OPERATING SYSTEMS:

· Windows 2000, XP, Vista, and 7 operation system.

HARDWARE REQUIREMENT:

· Desk top computer with Pentium IV or later compatible.

· One available PCIe slot

PACKAGE CONTENTS :

· PCIe Adaptor Card

· User’s Manual

Click to view full size

(Pictures are For Illustration Purposes Only)
