Huntkey EasyGo 90W Slim Notebook Power Adaptor, 1.6cm thick, with USB Power Port NBAHUNTKEY90WSL

Download Brochure

Huntkey EasyGo  90W Slim is an Universal Notebook Adaptor featuring slim and manual voltage adjustable. 90W SLIM can adjust the output voltage for compatibility with most notebook brands. The ultra-thin design of 1.6cm thick allows it to easily fit in your Notebook bag. Many portable digital devices can be charged with its 5V USB power port, such as mobile phone, mobile DVD, digital camera, PDA, MP3, MP4 and so on. Over Current Protection, Over Load Protection, Over Temperature Protection and Over Voltage Protection make you feel at ease, relieved and comfortable.

Features

• Ultra-small size
• 5V USB power port
• Manual voltage adjustable, Several adaptor tips, compatible with several types of Notebooks
• Jitter-proof design minimizes electromagnetic interference
• Multiple Protections: OPP, OVP, OCP, OTP and SCP
  Over Power Protection
  Over Voltage Protection
  Over Current Protection
  Over Temperature Protection
  Short Circuit Protection

Specifications

• Input voltage: 100-240VAC
• Input frequency: 50/60Hz
• Output: 15-17VDC 5.2A MAX
• 18-20VDC 4.74A MAX
• 5VDC 0.5A MAX
• Output watt: 90W
• Efficiency: Energy Star V
• Ripple/Noise: <350mV
• Operating temperature: 0C to + 40C
• Stand by power: < 0.50W
• Size：145*71.5*16.5mm(L*W*H）

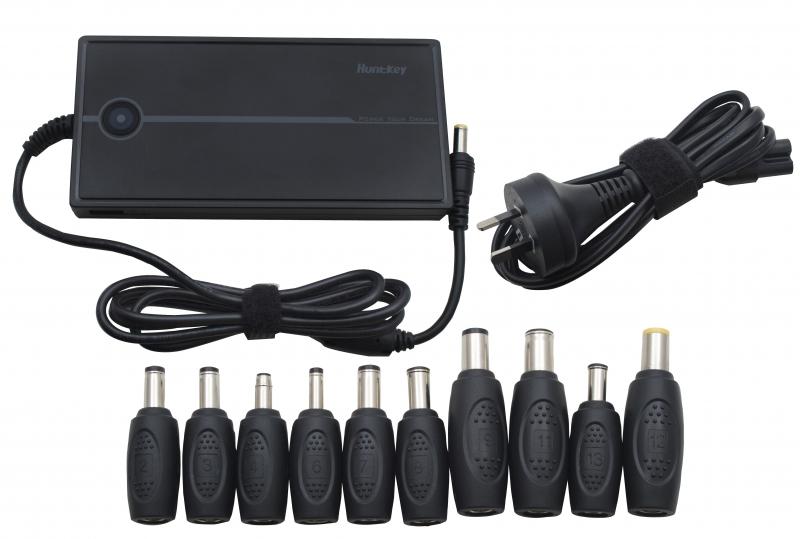

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)
