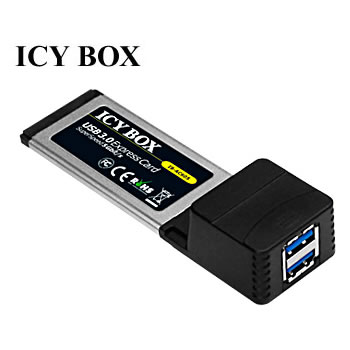

ExpressCard to USB3.0 Adapter, Icy Box, IB-AC605, 2-Port USB3.0 USBICY605U3PCMC

Key Features

- PCI Express Single-lane (x1) revision 2.0 (5 Gbit/s)
- USB 3.0 Revision 1.0, transfer rate up to 5 Gbit/s
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
- With 2 external USB 3.0 ports
- Each USB 3.0 port supplies +5 V / 900 mA power output
- 4pin power connector for receiving extra power from system
- Hot-swap: connect/disconnect devices without powering down the system
- Supports USB data transfer rate of 1.5/12/480/5000 Mbit/s
- Compliant with xHCI (eXtensible Host Controller Interface) Revision 0.95
- Support External USB HDD, USB Pen-drives, CD-R, Printer, digital camera and video camcorders
- Supporting System Windows XP/Vista/7 (32/64-bit)

Note

1. IB-AC605 also support USB 2.0 cable, but the transfer is limited to USB 2.0.
2. USB 3.0 has a 10 times higher bandwidth as USB 2.0 (5 Gbit/s to 480 Mbit/s) and theoretically 10 times higher transfer rate. In practice, the transfer rate is limited by the slower SATA interface of the hard drive (3 Gbit/s).

Click to view full size

(Pictures are For Illustration Purposes Only)
