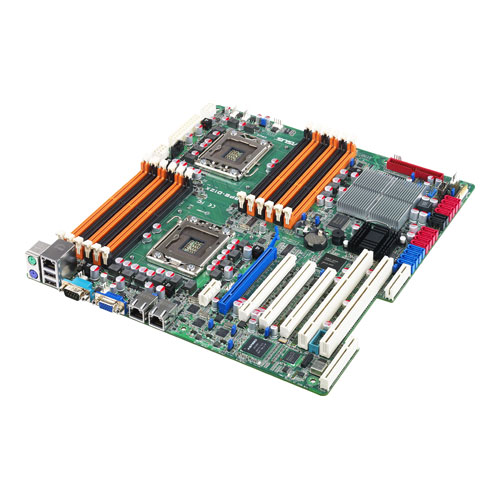

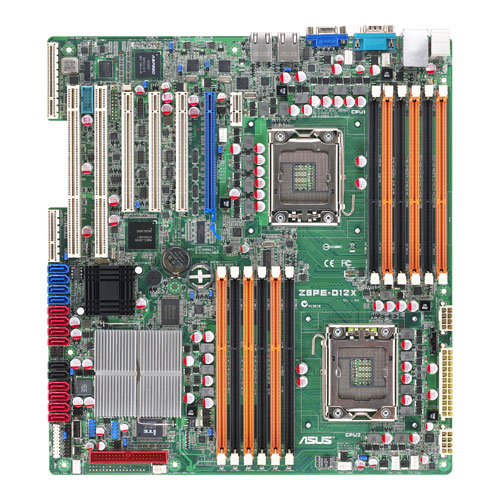

ASUS Z8PE-D12X M/board - Intel Xeon 5500, Dual 1366 Socket, 12 Total slots x DDR3 DIMM, 4 x PCI-E x16, SATAII RAID, Int. VGA, GbE LAN, SSI EEB 3.61 90-MSVCH0-G0UAY00Z
Information
Item ID .: 236857
Item Number .: B-Z8PE-D12X
Manufacturer Part No .: 90-MSVCH0-G0UAY00Z
UPC/EAN Number .:
Our Stock ** .: 1-3days* Price .:
Quantity
.:
QR 2D barcode
Product link .: Product
Manufacturer's link
.: Asus
Related Product(s)
Review Link(s)
* Indication only, please consult the supplier stock level below. ** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.
Stock Information
Our Qty in Stock Availability and ETA
Our own stock 0 Usually 1-3 days (when supplier has stock)
Supplier's Qty in Stock Availability and ETA Updated
Supplier one
4 26/05/12 06:29PM Supplier two
(ignore this, cost price is higher than our retail price) 26/05/12 06:34PM
Features
Specifications
Processor / System Bus 2 x Socket 1366
Intel® Xeon® W5500 Series (130W)
Six-Core/ Quad-Core Intel® Xeon® X5600/ 5500 Series (95W)
Quad-Core/ Dual-Core Intel® Xeon® E5600/ 5500 Series (80W)
Six-Core/ Quad-Core/ Dual-Core Intel® Xeon® L5600/ 5500 Series (60W/ 40W)
QPI 4.8/ 5.86/ 6.4 GT/s
Core Logic Intel® 5520 chipset IOH
Intel® ICH10R I/O Controller
NEC PCI-X Bridge
Form Factor SSI EEB 3.61
12" x 13"
ASUS Features Rack Ready (Rack and Pedestal dual use)
ASWM2.0
FAN speed control
Memory Total Slots : 12 (3-channel per CPU, 6-DIMM per CPU)
Capacity : Maximum up to 96GB (RDIMM), Maximum up to 48GB (UDIMM)
Memory Type : DDR3 800/1066/1333 Reg DIMM/ Unbuffered DIMM with ECC
Memory Size :
1GB 2GB 4GB 8GB (RDIMM); 1GB 2GB 4GB (UDIMM)
Expansion Slots (follow SSI Location #) Total PCI/PCI-X/PCI-E Slots: 6
Slot Location 1: 1 * PCI-X 100/133 MHz
Slot Location 2: 1 * PCI-X 100/133 MHz
Slot Location 3: 1 * PCI-E x16 (Gen2 x8 Link)
Slot Location 4: 1 * PCI-E x16 (Gen2 x8 Link)
Slot Location 5: 1 * PCI-E x16 (Gen2 x8 Link)
Slot Location 6: 1 * PCI-E x16 (Gen2 x16 Link) (Auto switch to x8 Link if slot 5 is occupied)
Slot Location 7: 1 * MIO Slot for Audio card (PCI-E x1 is not supported)
Additional Slot 1: 1 * PIKE Slot for Stroage expansion
Storage Ide Controller :
IT8213F
Sata Controller :
Intel® Ich10R :
6 SATA2 300MB/s ports
Intel Matrix Storage (for Windows only)
(Support software RAID 0, 1, 10 & 5)
LSI® MegaRAID (for Linux/Windows)
(Support software RAID 0, 1, 10)
Sas Controller :
Optional :
ASUS PIKE 1064E 4-port SAS RAID card
ASUS PIKE 1068E 8-port SAS RAID card
ASUS PIKE 1078 8-port SAS HW RAID card
ASUS PIKE 6480 8-port SAS RAID card
Networking Lan : 2 * Intel® 82574L + 1 * Mgmt LAN
Graphic Vga :
Aspeed AST2050 8MB
Onboard I/O Connectors 3 x PSU Connector : 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector
1 X Management Connector :
Onboard socket for optional management card
3 x USB Connectors (support 5 USB ports) (One for internal Type A USB connector )
8 X Fan Header :
4-pin
2 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
Rear I/O Connectors 1 x External Serial Port
2 x External USB Port
1 x VGA Port
2 x RJ-45 + 1 Management Port
1 x PS/2 KB/Mouse
Management Solution Software : ASWM2.0
Out Of Band Remote Management :
Optional ASMB4-iKVM for KVM-over-Internet
Monitoring CPU Temperature
FAN RPM
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Environment Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non Operation Humidity :
20% ~ 90% (Non condensing)
Accessories Standard Gift Box Pack (1pcs per Carton):
6 x SATA Data Cables
1 x IDE Cable Set
1 x I/O Shield
1 x ASUS Mainboard Support CD
1 x User's Guide
2 x Thermal sensor cable
Standard Bulk Pack (10pcs per Carton):
1 x I/O Shield
1 x ASUS Mainboard Support CD
1 x User's Guide
Product SKUs Standard Gift Box Pack
Standard Gift Box Pack with ASMB4-iKVM
Standard Gift Box Pack with MIO
Standard Bulk Pack
Standard Bulk Pack with ASMB4-iKVM
Note *Refer to ASUS Server AVL for latest update
(Pictures are For Illustration Purposes Only)
