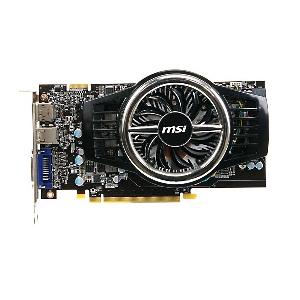

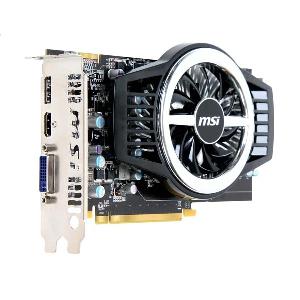

MSI R5770-PMD1G, ATI Radeon HD 5770 1G GDDR5, HDMI, 2*DVI

Download Brochure

Features

- Microsoft DirectX 11 Support
- ATI Eyefinity Technology
- ATI Stream Technology
- 40 nm Process Technology
- Advanced GDDR5 Memory Technology
- 2nd Generation TeraScale Engine
- Microsoft Windows 7 support
- ATI CrossFireX™ Technology
- Enhanced Anisotropic Filtering
- Accelerated Video Transcoding
- HDMI 1.3 Support
- Dolby TrueHD and DTS-HD Master Audio Support
- ATI PowerPlay™ Technology Enhanced Support for GDDR5 memory
- ATI Avivo™ Technology Enhanced Unified Video Decoder 2 (UVD 2)

Specification

- Graphics Engine ATI Radeon HD 5770
- Bus Standard PCI Express x16 2.1
- Memory Type GDDR5
- Memory Size(MB) 1024
- Memory Interface 128bit
- Core Clock Speed(MHz) 850
- Memory Clock Speed(MHz) 4800
- Memory Bandwidth(GB/sec) N/A
- Texture Fill Rate(billion/sec) N/A
- DVI Output 1
- D-SUB Output 1(via DVI to D-Sub adaptor)
- TV-Output N/A
- HDMI-Output 1
- VIVO(Video-in/out) N/A
- HDTV Support N/A
- HDCP Support Y
- HDMI Support Y
- Dual-link DVI Y
- Display Ouput(Max Resolution) 2560x1600
- RAMDACs 400
- DirectX Version Support 11
- OpenGL Version Support 3.2 (Driver support scheduled for release in 2010.)
- CrossFire Support Y
- SLI Support N/A
- 3-way SLI N/A
- HyperMemory Tech. N/A
- TurboCache tech. N/A

Click to view full size

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)
