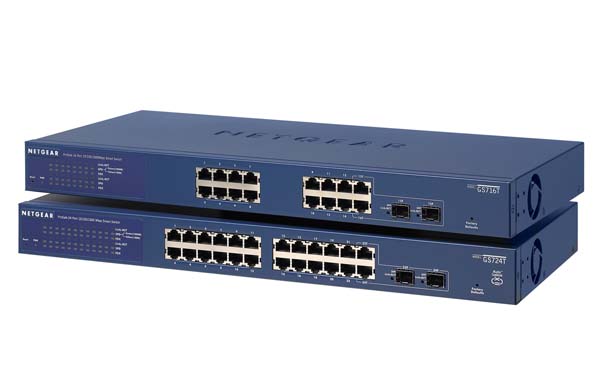

Netgear GS724T, 24x Smart Gigabit Switch with 2x SFP*GBIC slots GS724T-300AJS

Download Brochure

Download Brochure 2

Network Protocol and Standards Compatibility

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3x full-duplex flow control

Interfaces

• GS724T: 24 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports)
• GS716T: 16 RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (Auto Uplink on all ports)
• 2 Dual Personality SFP slots for fiber Gigabit Ethernet modules

Administrative Switch Management

• IEEE 802.1D Spanning Tree Protocol
• RFC 1157 SNMP v1, v2c
• RFC 1213 MIB II
• RFC 1643 Ethernet Interface MIB
• RFC1493 Bridge MIB
• Private Enterprise MIB
• Jumbo Frame Support (up to 9216 bytes)
• IEEE 802.1Q Tag VLAN
• GS716T: 64 Static VLANs
  - Supports 16 port-based VLAN
• GS724T: 128 Static VLANs
  - Supports 24 port-based VLAN
• IEEE 802.1p (Class of Service)
• DSCP - L3 QoS
• Port-based QoS (options High/Normal)
• Port Trunking - Manual as per IEEE802.3ad Link Aggregation
• DHCP client function
• Access Control: Trusted MAC
• Broadcast storm control (GS724T only)
• Port mirroring (many-to-one)
• Port setting
• Web-based configuration, anywhere on the network
• Smartwizard Discovery Utility program auto discovers devices (up to 254 agents/switches); set system configuration to each agent
• Configuration backup/restore (easy to configure more than one switch)
• Password access control and Restricted IP Access List
• Firmware upgradeable

Active Flow Control

• Full-duplex IEEE 802.3x pause frame flow control
• Half-duplex back-pressure control

Performance Specifications

• Forwarding modes: Store-and-forward
• Bandwidth: GS724T = 48 Gbps, GS716T = 32 Gbps
• Network latency:
  GS716T average latency 34.8 us for 100 Mbps with 64 bytes
  GS724T average latency 10.59 us for 100 Mbps with 64 bytes
• Buffer memory: 256 KB embedded memory per unit
• Priority queues: 4
• Priority queuing: Weighted Round Robin (WRR)
• Address database size: 8,000 media access control (MAC) addresses per system
• Addressing: 48-bit MAC address
• Mean time between failures (MTBF):
  - GS716T = 59,500 hours (~6.8 years)
  - GS724T = 59,500 hours (~6.8 years)
• Acoustic Noise:
  - GS724T = 41 dBA
  - GS716T = 42.5 dBA

LEDs

• Unit: Power
• Per port: Link, activity, speed, duplex

Power Supply

• Power Consumption:
  - GS716T - 32W
  - GS724T - 43.2W
• 100-240V AC/50-60 Hz universal input

Physical Specifications

• Dimensions (h x w x d):
  - GS716T: 43 x 440 x 205 mm (1.7 x 17.3 x 8.1 in)
  - GS724T: 43 x 440 x 260 mm (1.7 x 17.3 x 10.2 in)
• Weight:
  - GS716T: 3.5 kg (7.7 lb)
  - GS724T: 3.6 kg (7.9 lb)

Environmental Specifications

• Operating temperature: 32° to 104°F (0° to 40° C)
• Storage temperature: -4° to 158°F (-20° to 70° C)
• Operating humidity: 90% maximum relative humidity, non-condensing
• Storage humidity: 95% maximum relative humidity, non-condensing
• Operating altitude: 10,000 ft (3,000 m) maximum
• Storage altitude: 10,000 ft (3,000 m) maximum

Electromagnetic Compliance

• CE mark, commercial
• FCC Part 15 Class A
• VCCI Class A
• EN 55022 (CISPR 22)
• EN 55024 (CISPR 24)
• C-Tick

Safety Agency Approvals

• UL listed (UL 1950)/cUL
• IEC 950/EN 60950
• CE mark, commercial
• CUL 60950 (Listed)/EN 60950 (Low Voltage Directive)

Modules

• NETGEAR ProSafe AGM731F 1000BASE-SX SFP GBIC Module with LC connectors for 50um or 62.5um multi-mode fiber cable
• NETGEAR ProSafe AGM732F Fiber 1000BASE-LX SFP GBIC Module with LC connectors for 9um single-mode fiber cable
• NETGEAR ProSafe AGM733 Fiber 1000BASE-ZX SFP GBIC Module with LC connectors for 9um single-mode fiber cable

Warranty

• NETGEAR Lifetime Warranty†

ProSupport Service Packs Available

OnCall 24x7, Category 1

• PMB0331-100 (US)
• PMB0331 (non-US)

XPressHW, Category 1

• PRR0331

Package Contents

• 16- or 24-port Gigabit Smart Switch (GS716T or GS724T)
• Rubber footpads
• Power cord
• Rack-mount kit
• Smart Switch resource CD
• Smart Switch installation guide
• Warranty/support information card
