Netcomm C10 Communications C10100P remote Central Filter/Splitter Epoxy Potted 1078960

Download Brochure

Download Brochure 2

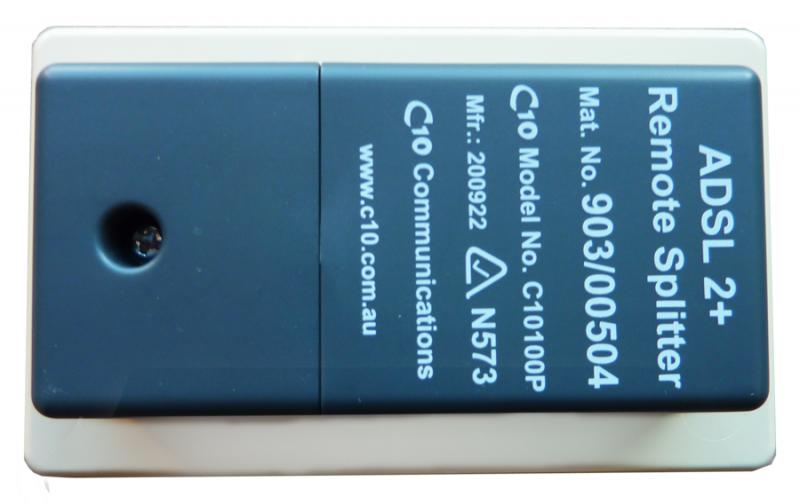

The Model C10100P is a Remote splitter/filter (Central splitter/filter) for use at a central location within
customer’s premise. Its purpose is to centrally separate the ADSL signal and voice frequency signal.
No distributed (inline) filters are required in this installation Approved technical person will be required
to install. Can also be installed inside Network Termination Device (NTD).

Features
• Has a 4 port IDC termination for line, modem and 2 X phones.
• Isolate telephone equipment impedances from the ADSL and Home Phone Network (HPN) house wiring.
• Attenuate ADSL and HPN signals to telephone equipment to prevent conversion to voice band signals.
• Attenuate HPN signals to unbalanced telephone equipment to prevent radiation into electronic equipment.
• Attenuate radio signals picked up by unbalanced telephone acting as an antenna from affecting ADSL and HPN receivers.
• Minimise voice band interference – transmission, signalling and supervision.
• G.dmt, G.Lite, ADSL, ADSL2, ADSL2+ compatible.
• Conforms to AS/ACIF S041:2005, AS/ACIF S002 – Appendix F; and AS/NZS60950(AS3260) safety.
• Conforms to Telstra RCIT.0004
• Meets ETSI TS 101 952 –1-1 v1.1.1 (2002-05)

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)
