D-Link Web Smart 24-Port Gigabit 10/100/1000MBPS PoE Switch with 4 Combo Sfp Slots DGS-1224TP

Information

Item ID

221318

Item Number

M-DGS-1224TP

Manufacturer Part No

DGS-1224TP

UPC/EAN Number

Our Stock **

1-3days*

Price

$705.75

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: D-Link
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	1	ETA: 4/6/12	23/05/12 08:50AM
Supplier two	1		23/05/12 08:42AM
Supplier three	9		23/05/12 08:56AM

Features

Download Brochure

Download Brochure 2

The D-Link DGS-1224TP is a 24-port PoE Gigabit Web Smart Switch that provides basic management features including SNMPv1, spanning tree, and IGMP snooping.

Features

* D-Link Green Technology
* 48Gbps Switching Capacity
* 8K MAC Address Table
* True Plug & Play
* Fiber Media Support Via SFPs
* 24 IEEE 802.3af Power over Ethernet Ports

D-Link’s latest generation of Web Smart Gigabit Switches blend plug-and-play simplicity with exceptional performance and reliability to create a cost-effective solution for bandwidth-starved work groups and departments. Enhanced features of the DGS-1224TP include Gigabit uplink combo ports, Power over Ethernet, QoS, and versatile management functions. Power over Ethernet easily allows you to install and power wireless access points, network cameras, VoIP phones and other network equipment for simplified and reduced deployment costs. Total PoE power budget on 24 10/100/1000 ports for the DGS-1224TP is 180 watts. Therefore, the maximum power output per PoE port is up to 15.4W on 11 ports or 7.5W on 24 ports simultaneously.

The DGS-1224TP is housed in a new style 19” rackmount case with an easy-to-view front panel and diagnostic LEDs. User-friendly, web-based management is supported for easy configuration and flexibility for different network requirements.

D-Link Green™ Technology
D-Link is striving to take the lead in developing innovative and power-saving technology without sacrificing operational performance or functionality. The DGS-1224TP implements D-Link Green technology, resulting in reduced power consumption and heat dissipation. The switch has adopted the latest silicon technology, which helps lower your power consumption usage. If a port does not have a cable link or the connected device is powered down, the port goes to “sleep mode”, reducing power consumption and saving energy.

Protecting the Environment for a Better Tomorrow
The incorporation of D-Link Green technology into DGS-1224TP switch re-emphasizes D-Link’s strong commitment to protecting the environment and leading the development of eco-friendly products. DGS-1224TP complies with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives. RoHS directives restrict the use of specific hazardous materials during the manufacture of electrical and electronic goods, while WEEE directives apply standards for proper disposal and recyclable packaging to help reduce wastage.

Secure Your Network
The DGS-1224TP provides a robust set of security features normally found only in fully managed switching solutions. They are equipped with the D-Link Safeguard Engine™ to protect the CPU from malicious attacks. When frames enter the switch, the D-Link Safeguard Engine detects and blocks broadcast, multicast, and unicast flooding, which can overload a CPU and bring network traffic to a halt. In addition, the switches provide support for secure encrypted 802.1X Port-based Authentication, Broadcast Storm Control, and up to 256 static MAC address entries.

You can also manage the switches from a remote station using the Trusted Host function. Management can be from up to three designated management stations through a web browser or telnet session.

IEEE 802.1Q VLAN Tagging
VLANs allow your network to be segmented into Departmental, Hierarchical, and Security groups and place a “tag” in a frame to identify which VLAN it belongs to. This allows 802.1Q-compliant devices to work seamlessly together to manage VLAN traffic.

Asymmetric VLANs
Asymmetric VLANs are also supported by the DGS-1224TP. With this feature enabled, VLAN groups can send information to each other without the traffic going through a router or a Layer 3 switch. This eliminates expense and maximizes efficiency while maintaining security.

802.1p Priority Tagging or DSCP-based QoS
The DGS-1224TP allows users to prioritize traffic based on 802.1p or DSCP-based (Differentiated Services Case Point) QoS. Port-based QoS prioritizes all port traffic with one value, while 802.1p classifies frames according to their VLAN tag. DSCP-based QoS prioritizes traffic according to its IP header. DSCP-based QoS and 802.1p priority tagging prioritizes traffic such as VoIP as it enters the switch, ensuring that your data is always clear and jitter-free.

Link Aggregation
The DGS-1224TP supports Static Link Aggregation, which “trunks” multiple ports together to function as a single, high-bandwidth channel. When a high-bandwidth channel is needed to uplink to another switch, Link Aggregation makes this process simple and hassle-free.

Jumbo Frame Support
Jumbo Frame support is designed to improve network throughput and significantly reduce the CPU utilization of large file transfers (such as multimedia files or large data files). This is accomplished by enabling larger, more efficient payloads per packet. The DGS-1224TP supports Jumbo Frames up to 10KB in size.

IGMP Snooping
IGMP Snooping allows for the forwarding of multicast packets, such as streaming audio and video, without increasing network congestion. By snooping IGMP registration information within a frame, a list of workstations in the multicast group is created. The switch uses this list to intelligently forward packets to the appropriate workstations.

Cable Diagnostics
Because your connection is just as important as the switch itself, the DGS-1224TP is designed with a cable diagnostic feature that detects transmission errors and the condition of cables attached to the switch’s Gigabit copper ports. Cable Diagnostics make it easier to troubleshoot cabling issues through a web-based interface and keep all connections up.

Advanced Management Features
The DGS-1224TP supports SNMP v1, a useful tool in managing and controlling SNMP-supported network devices. SNMP enables the switches to provide valuable information about the switch’s status and send traps on abnormal events. This sharing of vital management information saves time and money.

The DGS-1224TP also supports 802.1D Spanning Tree, which provides protection from universal cabling loops forming within a network infrastructure. Spanning tree detects and breaks these loops, ensuring network uptime.

Management Utility
In addition to the Web-based Management Interface, the DGS-1224TP also ships with the D-Link SmartConsole Utility. This utility provides a valuable tool in managing, planning, and troubleshooting network configurations. Managing a Web Smart switch takes only minutes. With full color graphics, diagrams, and easy-to-understand navigation menus, using the SmartConsole Utility is as easy as surfing the web. The SmartConsole Utility also includes:
Discovery List – Automatically detects and displays up to 254 D-Link Web Smart Switches on your network along with their MAC addresses.
Monitor List – Monitors switch status and any trap messages sent to a designated station.
Trap View – Notifies the administrator whenever an abnormal event occurs on the switch.
Device Setting – Allows the administrator to set up the switch’s IP Address, Subnet Mask, Gateway, Send Trap to Address, System Name, Password, and Location.

With its green sensibility and easy-to-use, robust feature set, the DGS-1224TP makes a great solution for any growing business.

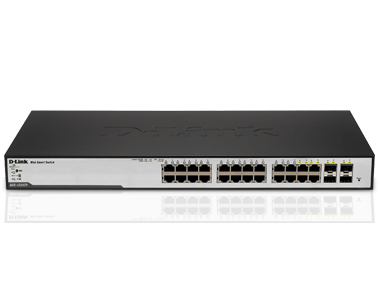

dgs-1224tp switch d-link network management

Click to view full size

Click to view full size

dgs-1224tp switch network d-link management image 3

Click to view full size

power ports traffic technology also image 3

Click to view full size

(Pictures are For Illustration Purposes Only)
