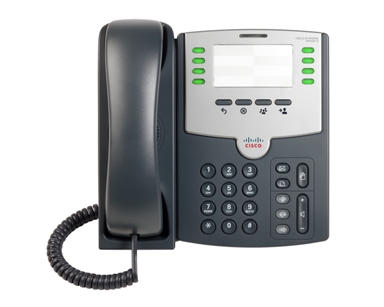

Cisco 8 Line IP Phone With PoE and PC Port SPA501G

Information

Item ID

202950

Item Number

202950

Manufacturer Part No

SPA501G

UPC/EAN Number

882658269998

Our Stock **

1-3days*

Price

$107.13

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Cisco/Linksys
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	24	ETA: 6/6/12	25/05/12 08:50AM
Supplier two	2		26/05/12 08:28AM

Features

Download Brochure

8 Line IP Phone With PoE and PC Port : The Cisco SPA 501G is an 8-line desktop IP phonewith paper label, 802.3af Power over Ethernet(PoE), and PC port. It is a full-duplexspeakerphone with wideband audio (HD Voice)capability, with advanced acoustic echocancellation. Highlights: * Full-featured8-line business-class IP phone supporting Powerover Ethernet (PoE) * Connects directly to anInternet telephone service provider or to an IPprivate branch exchange (PBX) * Easy installationand highly secure remote provisioning, as well asmenu-based and web-based configuration * Widebandaudio for unsurpassed voice clarity and enhancedspeaker quality * Paper label insert for buttonsto indicate speed dials, shared lines, orextensions.PRODUCTBrand Name : CiscoManufacturer Web Site : http://www.cisco.com/Product Type : IP PhoneProduct Model : SPA501G.PI DATEIntroduction Date: Nov 2010.PHONE FEATURESNo. of Phone Lines : 8Button Type #1 : Dedicated Hold ButtonButton Type #2 : Audio mute on/offButton Type #3 : Headset on/offButton Type #4 : Speakerphone on/offButton Type #5 : Settings button Codec Support #1 : G.711a Codec Support #2 : G.726 Codec Support #3 : G.729ab Codec Support #4 : G.722 Codec Support #5 : G.711µ Signaling Protocol Support #1 : ICMP Signaling Protocol Support #2 : R TP Signaling Protocol Support #3 : RTCP Signaling Protocol Support #4 : DHCP Signaling Protocol Support #5 : ARP Interface Type #1 : 1 x RJ-45 Interface Type #2 : 1 x RJ-45 Interface Type #3 : 1 x RJ- 9 Interface Type #4 : 1 x 2.5 mm jack . SWITCH FEATURES Switch Type : 10/100BASE-T Ethernet No. of Port : 2 . POWER FEATURES PoE Supported : PoE . DIMENSIONS Depth (mm) : 44 Height (mm) : 212 Width (m m) : 214 Weight (Grams) : 900 . OTHER FEATURES Color : Black Security : Security Features:
Password-protected system, preset to factory default.
Password-protected access to administrator an d user-level features.
HTTPS with factory-installed client certificate.
HTTP digest: encrypted authentication via MD5 (RFC 1321).
Up to 256-bit Advanced Encryption Standard (AES) encryp

Product Information
PI Date	Nov 2010
PRODUCT
Brand Name	Cisco
Manufacturer Web Site	http://www.cisco.com/
Product Type	IP Phone
Product Model	SPA501G
PHONE FEATURES
No. of Phone Lines	8
Button Type	Audio mute on/off
Button Type	Dedicated Hold Button
Button Type	Headset on/off
Button Type	Settings button
Button Type	Speakerphone on/off
Ringtone Type	10 User-Downloadable
Codec Support	G.711
Codec Support	G.711a
Codec Support	G.722
Codec Support	G.726
Codec Support	G.729ab
Signaling Protocol Support	ARP
Signaling Protocol Support	DHCP
Signaling Protocol Support	ICMP
Signaling Protocol Support	RTCP
Signaling Protocol Support	RTP
Interface Type	1 x 2.5 mm jack
Interface Type	1 x RJ-45
Interface Type	1 x RJ-9
SWITCH FEATURES
Switch Type	10/100BASE-T Ethernet
No. of Port	2
POWER FEATURES
PoE Supported	PoE
DIMENSIONS
Depth (mm)	44
Height (mm)	212
Width (mm)	214
Weight (Grams)	900
OTHER FEATURES
Color	Black
Security	Security Features: Password-protected system, preset to factory default. Password-protected access to administrator and user-level features. HTTPS with factory-installed client certificate. HTTP digest: encrypted authentication via MD5 (RFC 1321). Up to 256-bit Advanced Encryption Standard (AES) encryption SIP over Transport Layer Security (TLS). Secure Real-Time Transport Protocol (SRTP).
Network Features	DATA NETWORKING: MAC address (IEEE 802.3) , IPv4 (RFC 791) , Address Resolution Protocol (ARP) , DNS: A record (RFC 1706), SRV record (RFC 2782) , Dynamic Host Configuration Protocol (DHCP) client (RFC 2131) , Internet Control Message Protocol (ICMP) (RFC 792) , TCP (RFC 793) , User Datagram Protocol (UDP) (RFC 768) , Real-Time Transport Protocol (RTP) (RFC 1889, 1890) , Real-Time Control Protocol (RTCP) (RFC 1889) , Differentiated Services (DiffServ) (RFC 2475) , Type of service (ToS) (RFC 791, 1349) , VLAN tagging 802.1p/Q: Layer 2 quality of service (QoS) , Simple Network Time Protocol (SNTP) (RFC 2030)
Voice Features	VOICE GATEWAY: SIP version 2 (RFC 3261, 3262, 3263, 3264) SPCP with the Cisco Unified Communications 500 Series SIP proxy redundancy: dynamic via DNS SRV, A records Reregistration with primary SIP proxy server SIP support in NAT networks (including STUN) SIPFrag (RFC 3420) Secure (encrypted) calling via SRTP Codec name assignment Voice algorithms: G.711 (A-law and -law) G.726 (16/24/32/40 kbps) G.729 A G.722 Dynamic payload support Adjustable audio frames per packet Dual-tone multifrequency (DTMF), in-band and out-of-band (RFC 2833) (SIP INFO) Flexible dial plan support with interdigit timers IP address/URI dialing support Call progress tone generation Jitter buffer: adaptive Frame loss concealment Comfort Noise Generation (CNG) Voice activity detection (VAD) with silence suppression Attenuation/gain adjustments VMWI - Voicemail waiting indicator, via NOTIFY, SUBSCRIBE Third-party call control (RFC 3725)
Operating Temperature	0 to 40°C
Packaged Quantity	1
Compatibility	The SPA 501G supports the following with UC 500. WebEx PhoneConnect Time Card View Live Record / Live Replay Single Number Reach VoiceView Express HEADSETS SUPPORTED: It supports most universal 2.5-mm wired headsets (non Nokia versions), such as the Jabra C250/C500 and Plantronics MX250
Package Contents	Cisco SPA501G IP phone, handset Handset cord, RJ-45 Ethernet cable, Quick-Start Guide, CD
Other Features	TELEPHONY FEATURES : Eight voice lines Line status: active line indication User interface driven by Interactive Voice Response (IVR) Speakerphone Call hold Call waiting Outbound caller ID blocking Call transfer: attended and blind Three-way call conferencing with local mixing Multiparty conferencing via external conference bridge Automatic redial of last calling and last called numbers On-hook dialing Call swap Call back on busy Call blocking: anonymous and selective Call forwarding: unconditional, no answer, on busy Hot line and warm line automatic calling Call logs (60 entries each): made, answered, and missed calls Personal directory with auto-dial (100 entries) Do not disturb Digits dialed with number auto-completion Anonymous caller blocking Uniform Resource Identifier (URI) (IP) dialing support (vanity numbers) On-hook default audio configuration (speakerphone and headset) Multiple ring tones with selectable ring tone per line Date and time with support for intelligent daylight savings Call start time stored in call logs Distinctive ringing based on calling and called number 10 user-downloadable ring tones Speed dialing, eight entries Configurable dial/numbering plan support INDICATOR LIGHTS/LEDs :Speakerphone on/off button with LED Headset on/off button with LED, Mute button with LED, Message waiting LED
