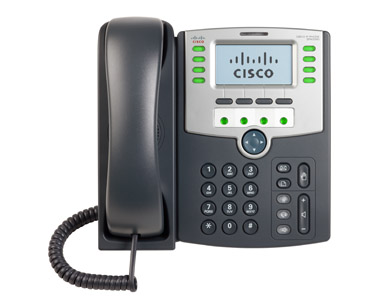

Cisco 12 Line IP Phone With Display, PoE and P SPA509G

Information

Item ID

202949

Item Number

202949

Manufacturer Part No

SPA509G

UPC/EAN Number

882658270000

Our Stock **

1-3days*

Price

$187.82

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Cisco/Linksys
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	4	ETA: 17/7/12	25/05/12 08:50AM
Supplier two	0	ETA: 01/06/2012	26/05/12 08:28AM

Features

Download Brochure

12 Line IP Phone With Display, PoE and P : Cisco SPA509G 12-Line IP Phone with 2-PortSwitch, PoE, and LCD Display HIGHLIGHTS: Full-featured 12-line business-class IP phonesupporting Power over Ethernet (PoE) Monochromebacklit display for ease of use, aesthetics, andon-screen applications Connects directly to anInternet telephone service provider or to an IPprivate branch exchange (PBX) Cisco HD Voicefor unsurpassed voice clarity and enhanced speakerquality Easy installation and highly secureremote provisioning, as well as menu-based andweb-based configuration Supports both SessionInitiation Protocol (SIP) and Smart Phone ControlProtocol (SPCP) with the user’s Cisco UnifiedCommunications 500 Series for Small BusinessHardware Features: Pixel-based display: 128 x64 monochrome LCD graphical display with backlight 4-way rocking directional knob for menunavigation Voicemail message waiting indicator(VMWI) light Voicemail message retrieval button Settings button for access to feature, setup,and configuration menus Volume control rockingup/down knob controls handset, headset, speaker,ringer Standard 12-button dialing pad High-quality handset and cradle Built-inhigh-quality microphone and speaker LED testfunction Two Ethernet LAN ports with integratedEthernet switch: 10/100BASE-T RJ-45 802.3af-compliant PoE.PRODUCTBrand Name : CiscoManufacturer Web Site : http://www.cisco.com/ Product Model : SPA509G . PI DATE Introduction Date: Nov 2010 . DISPLAY FEATURES Display Type : Monochrome backlit display Display Resolution : 128 x 64 LCD Type : LCD . PHONE FEATURES No. of Phone Lines : 12 Button Type #1 : Dedicated Hold Button Button Type #2 : Audio mute on/off Button Type #3 : Headset on/off Button Type #4 : Speakerphone on/off Button Type #5 : Settings button Ringtone Type : 10 User -Downloadable Codec Support #1 : G.711a Codec Support #2 : G.726 Codec Support #3 : G.729a Codec Support #4 : G.722 Codec Support #5 : G.711µ Signaling Protocol Support #1 : ICMP Signaling Protocol Su pport #2 : RTP Signaling Protocol Support #3 : RTCP Signaling Protocol Support #4 : DHCP Signaling Protocol Support #5 : ARP Interface Type #1 : 1 x RJ-45 Interface Type #2 : 1 x RJ-45 Interface Type #3 : 1 x RJ-9 Interface Type #4 : 1 x 2.5 mm jack . SWITCH FEATURES Switch Type : 10/100BASE-T Ethernet No. of Port : 2 . POWER FEATURES PoE Supported : PoE . DIMENSIONS Depth (mm) : 44 Height (mm) :

Product Information
PI Date	Nov 2010
PRODUCT
Brand Name	Cisco
Manufacturer Web Site	http://www.cisco.com/
Product Type	IP Phone
Product Model	SPA509G
DISPLAY FEATURES
Display Type	Monochrome backlit display
Display Resolution	128 x 64
LCD Type	LCD
PHONE FEATURES
No. of Phone Lines	12
Button Type	Audio mute on/off
Button Type	Dedicated Hold Button
Button Type	Headset on/off
Button Type	Settings button
Button Type	Speakerphone on/off
Ringtone Type	10 User-Downloadable
Codec Support	G.711
Codec Support	G.711a
Codec Support	G.722
Codec Support	G.726
Codec Support	G.729a
Signaling Protocol Support	ARP
Signaling Protocol Support	DHCP
Signaling Protocol Support	ICMP
Signaling Protocol Support	RTCP
Signaling Protocol Support	RTP
Interface Type	1 x 2.5 mm jack
Interface Type	1 x RJ-45
Interface Type	1 x RJ-9
SWITCH FEATURES
Switch Type	10/100BASE-T Ethernet
No. of Port	2
POWER FEATURES
PoE Supported	PoE
DIMENSIONS
Depth (mm)	44
Height (mm)	212
Width (mm)	214
Weight (Grams)	900
OTHER FEATURES
Color	Black
Security	SECURITY FEATURES: Password-protected system, preset to factory default Password-protected access to administrator and user-level features HTTPS with factory-installed client certificate HTTP digest: encrypted authentication via MD5 (RFC 1321) Up to 256-bit Advanced Encryption Standard (AES) encryption SIP over Transport Layer Security (TLS) Secure Real-Time Transport Protocol (SRTP)
Network Features	DATA NETWORKING: MAC address (IEEE 802.3) IPv4 (RFC 791) Address Resolution Protocol (ARP) DNS: A record (RFC 1706), SRV record (RFC 2782) Dynamic Host Configuration Protocol (DHCP) client (RFC 2131) Internet Control Message Protocol (ICMP) (RFC 792) TCP (RFC 793) User Datagram Protocol (UDP) (RFC 768) Real-Time Transport Protocol (RTP) (RFC 1889, 1890) Real-Time Control Protocol (RTCP) (RFC 1889) Differentiated Services (DiffServ) (RFC 2475) Type of service (ToS) (RFC 791, 1349) VLAN tagging 802.1p/Q: Layer 2 quality of service (QoS) Simple Network Time Protocol (SNTP) (RFC 2030)
Voice Features	VOICE GATEWAY: SIP version 2 (RFC 3261, 3262, 3263, 3264) SPCP with the Cisco Unified Communications 500 Series SIP proxy redundancy: dynamic via DNS SRV, A records Reregistration with primary SIP proxy server SIP support in NAT networks (including STUN) SIPFrag (RFC 3420) Secure (encrypted) calling via SRTP Codec name assignment Voice algorithms: G.711 (A-law and -law) G.726 (16/24/32/40 kbps) G.729 A G.722 Dynamic payload support Adjustable audio frames per packet Dual-tone multifrequency (DTMF), in-band and out-of-band (RFC 2833) (SIP INFO) Flexible dial plan support with interdigit timers IP address/URI dialing support Call progress tone generation Jitter buffer: adaptive Frame loss concealment Comfort Noise Generation (CNG) Voice activity detection (VAD) with silence suppression Attenuation/gain adjustments VMWIVoicemail waiting indicator , via NOTIFY, SUBSCRIBE Caller ID support (name and number) Third-party call control (RFC 3725)
Operating Temperature	0 to 40°C
Packaged Quantity	1
Compatibility	The SPA 509G supports the following with user's UC 500. WebEx PhoneConnect Time Card View Live Record / Live Replay, Single Number Reach VoiceView Express HEADSETS SUPPORTED: The SPA 509G has a 2.5-mm standard 4-segment phone jack. It supports most universal 2.5-mm wired headsets (non Nokia versions), such as the Jabra C250/C500 and the Plantronics MX250
Package Contents	Cisco SPA509G 12-line IP Phone with Programmable Keys, handset, and stand Handset cord RJ-45 Ethernet cable Quick-Start Guide CD
Other Features	TELEPHONY FEATURES : 12 voice lines Line status: active line indication, with name and number Menu-driven user interface Speakerphone Call hold Call waiting Caller ID name and number Outbound caller ID blocking Call transfer: attended and blind Three-way call conferencing with local mixing Multiparty conferencing via external conference bridge Automatic redial of last calling and last called numbers On-hook dialing Call swap Call back on busy Call blocking: anonymous and selective INDICATOR LIGHTS/LEDs : Speakerphone on/off button with LED Headset on/off button with LED Mute button with LED Message waiting LED

Click to view full size

spa509g nbsp type features support image 2

Click to view full size

(Pictures are For Illustration Purposes Only)
