Asus Xonar D2/Pm, 118dB Snr 7.1 PCI 24Bit DirectSound Eax

Information

Item ID

199763

Item Number

F-Xonar_D2_PM

Manufacturer Part No

Xonar D2/PM

UPC/EAN Number

Our Stock **

1-3days*

Price

$198.92

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Asus
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	0		9/02/12 04:30PM

Features

Ultra Fidelity 7.1 PCI Sound Card with Complete Dolby®/DTS® Sound Technologies

ASUS Xonar D2 audio card, dedicated to be the best audio card for gaming and home entertainments, provides unprecedented 118dB In/Out SNR audio quality and features for games, music, and movies. Combining 192k/24bit ultra fidelity input and output at with a suite of Dolby and DTS sound technologies and abundant valuable software, the Xonar D2 is well designed to upgrade your PC to a powerful and high-quality Home Entertainment Center, which you will never have with onboard audio or other sound cards!

Unparalleled SNR up to 118db Audio Quality
High Definition Audio Processing at 192KHz/24Bit Sampling Rates
ALT technology: Legally backup digital music into non-protected MP3/WMA files
Dolby and DTS for Complete Digital Home Experience

Specifications

Audio Performance	Output Signal-to-Noise Ratio (A-Weighted): 118dB for all channels dB Input Signal-to-Noise Ratio (A-Weighted): 118 dB Output THD+N at 1kHz: 0.0004% (-108dB) Input THD+N at 1kHz: 0.0004% (-108dB) Frequency Response (-3dB, 24-bit/96kHz input): <10Hz to 46kHz (for all channels) Frequency Response (-3dB, 24-bit/192kHz input): <10Hz to 46kHz (for all channels) Output/Input Full-Scale Voltage 2 Vrms (5.65 Vp-p) Sample Rate Conversion Quality: Almost lossless, high-fidelity floating-point filters, which has: -140dB THD+N (typical value for 44.1K->48KHz, 24bit) -145dB Dynamic Range (typical value for 44.1K->48KHz, 24bit)
Main Chipset	Audio Processor: ASUS AV200 High-Definition Sound Processor (Max. 192KHz/24bit) 24-bit D-A Converter of Digital Sources: Burr-Brown PCM1796 4 (123dB SNR, Max. 192kHz/24bit) 24-bit A-D Converter for Analog Inputs:* Cirrus-Logic CS5381* 1 (120dB SNR, Max. 192kHz/24bit)
Sample Rate and Resolution	Analog Playback Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16/24bit Analog Recording Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16/24bit S/PDIF Digital Output: Dolby Digital, DTS, WMA-Pro S/PDIF Digital Input: 44.1K/48K/96K/192KHz @ 16/24bit ASIO 2.0 Driver Support: 44.1K/48K/96K/192KHz @ 16/24bit
I/O Ports	Analog Output Jack: 3.50mm mini jack 4 (Front/Side/Center-Subwoofer/Back) Analog Input Jack:* 3.50mm mini jack 2 (Line-In/Mic-In) Other line-level analog input (for CD-IN/TV Tuner):* CD-In, Aux-In (4-pin header on the card) Digital S/PDIF Output: Coaxial and High-bandwidth Optical Combo Connector Supports 192KHz/24bit Digital S/PDIF Input: Coaxial and High-bandwidth Optical Combo Connector Supports 192KHz/24bit MIDI Ports: Additional MPU-401 MIDI I/O bracket and converter cable
Driver Features	Operation System: Windows Vista/XP(32/64bit)/MCE2005 Dolby® Technologies: Dolby® Digital Live Dolby Digital Live encodes any audio signal on PC in real-time to Dolby Digital (AC3) 5.1 surround sounds to your home theater environment through one single S/PDIF connection Dolby® Headphone Dolby Headphone technology allows users to listen to music, watch movies, or play games with the dramatic 5.1-channel surround or realistic 3D spacious effects through any set of stereo headphones. Dolby® Virtual Speaker Dolby Virtual Speaker technology simulates a highly realistic 5.1-speaker surround sound listening environment from as few as two speakers. Dolby® Pro-Logic IIx Dolby Pro-Logic II is the well-known technology to process any native stereo or 5.1-channel audio into a 6.1- or 7.1- channel output, creating a seamless, natural surround soundfield. DTS® Technologies: DTS® Connect (DTS Interactive Encoder and DTS Neo:PC) Smart Volume Normalizer™: Normalizes the volume of all audio sources into a constant level Xear 3D™ Virtual Speaker Shifter: Virtual 7.1 speaker positioning Magic Voice™: Modifies the sound of your voice, for VOIP and online chat applications (Windows XP) Karaoke Functions: Music Key-Shifting and Microphone Echo effects (Windows XP) FlexBass™: Professional Bass Management/Enhancement system Other Effects: 10-band Equalier/27 Environment Effects 3D Sound Engines/APIs: Vista: DirectSound3D® GX 2.5, DirectSound® HW, DirectSound SW, A3D®1.0, OpenAL generic modes, 128 3D sounds processing capability XP: DirectSound2.5 SW, A3D®1.0, OpenAL generic modes, 128 3D sounds processing capability DirectX: DirectX 9.0 or above required for 7.1ch output
Bundled Software Utility	Portable Music Processor utility: Backup digital music content or CD audio into regular MP3/WMA files with Dolby Headphone, Dolby Virtual Speaker (w/ Pro-Logic II), and Smart Volume Normalization processing (Windows Media Player 10 or above is required) Professional Audio Editing Utility: 1. Ableton Live Lite 2. Cakewalk Production Plus Pack (SONAR LE, Dimension LE, and Project5 LE) PowerDVD 7.0: Software DVD player with Dolby Digital 5.1 decoder
Accessories	4 x 3.5mm-to-RCA adaptor cable (8ch) 2 x S/PDIF optical adaptors 1 x S/PDIF optical cable 1 x Additional MIDI card, cable, and external standard MIDI adaptor Y cable Dolby Demo CD

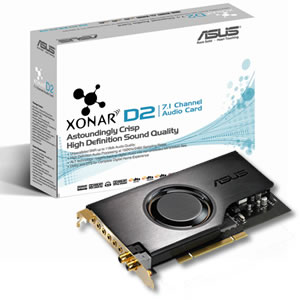

Click to view full size

(Pictures are For Illustration Purposes Only)
