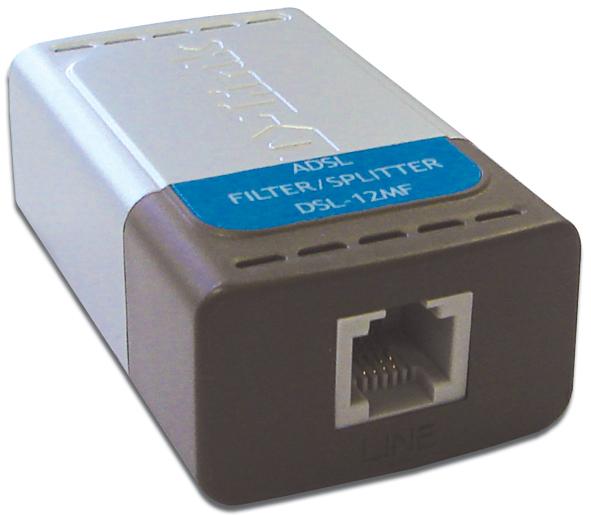

D-Link ADSL Modem Inline MicroFilter, DSL-12MF, Filter/Splitter

Information

Item ID

112794

Item Number

M-DSL-12MF

Manufacturer Part No

DSL-12MF

UPC/EAN Number

Our Stock **

Und5

Price

$12.10

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: D-Link
Related Product(s)
Review Link(s)

** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	Und5
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	51 (ignore this, cost price is higher than our retail price)	ETA: 4/6/12	24/05/12 08:50AM
Supplier two	160 (ignore this, cost price is higher than our retail price)		24/05/12 08:41AM
Supplier three	50 (ignore this, cost price is higher than our retail price)		24/05/12 12:34PM

Features

Download Brochure

Download Brochure 2

The DSL-12MF is a Central Filter (or Splitter) and is used on a line or extension where both an ADSL modem as well as a PSTN device is desired. The unit splits the line, providing a pass-through connection with no filtering to the ADSL modem, while providing a filtered connection to the PSTN device. Note that all other extensions still need to have a filter of some kind placed on them.- A Filter is required for each phone device connected to your wall outlet (Phone, Fax, Analog Modem, Answering Machine, Alarm Dialer etc).- A maximum of 3 filters may be installed on any one phone line.- Not to be used in conjunction with a "back to base" security alarm system.


Warranty
Weight
Extra	Return loss reference Impedance (Zr) 270 W +(750 W //150nF) Return loss (line & pots ports) 300Hz-3400Hz 14 dB Insertion Loss (IL) (3 Filters) @ 1kHz < 1.0 dB Insertion Loss Distortion (300-4000Hz) +/- 1.0 dB of (IL) DC Resistance 26 W 15mA-125mA Unbalance about earth 50Hz-4kHz 55 dB 4kHz-30kHz 55 dB 30kHz-1104kHz 55 dB Insulation resistance (250 Vdc) 10 M W ADSL off-hook isolation 32kHz-138kHz 55 dB 138kHz-1104kHz 65 dB

Click to view full size

modem adsl phone device providing

(Pictures are For Illustration Purposes Only)
